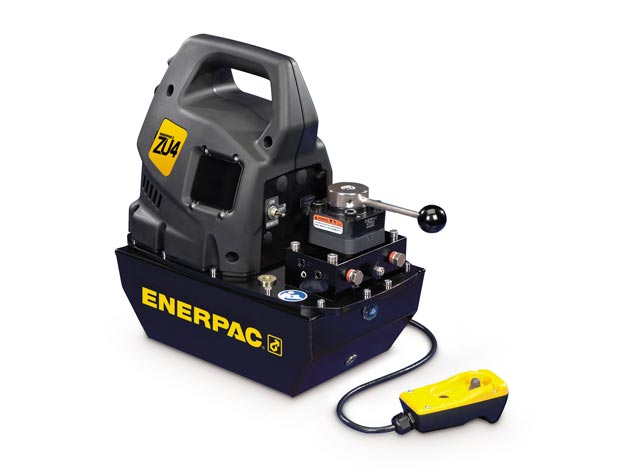

ZU4720PE

ZU4720PE

SKU: ZU4720PE Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure bar : 700

Series : ZU

Dimension A mm : 465

Dimension B mm : 180

Dimension C mm : 413

Dimension D mm : 422

Dimension E mm : 500

Dimension F mm : 396

Weight Kgs : 50

Hydraulic Pump Cylinder Compatability : Single-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,98 - 1,95

Hydraulic Pump Maximum Flowat Rated Pressure : 1,0 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Motor Electrical Specification : 208-240 V, 1 Ph, 50/60 Hz

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 1 Ph

Hydraulic Pump Motor Size Kw : 1,25

Hydraulic Pump Motor Voltage : 208-240 V

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 1,2

Hydraulic Pump Output Flow Rate 350 bar L min : 1,2

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 8,8

Hydraulic Pump Output Flow Rate 50 bar L min : 8,8

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 1,0

Hydraulic Pump Output Flow Rate 700 bar L min : 1,0

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 11,5

Hydraulic Pump Output Flow Rate 7 bar L min : 11,5

Hydraulic Pump Control : Pendant

Hydraulic Pump Power Source : Electric

Hydraulic Pump Relief Valve Adjustment Range bar : 140 - 700

Hydraulic Pump Reservoir Capacity cm3 : 20000

Hydraulic Pump Sound Leveld Ba : 85 - 90

Hydraulic Pump Usable Oil Capacity Litres : 20,0

Hydraulic Pump Valve Function : Advance / Retract

Hydraulic Pump Valve Model : VM22

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 1,0 l/min

Hydraulic Pump Valve Type : 3-way, 3-position, Tandem Center

PLG: default Price Group List Price : 1

Description

  • ZPS pressure switch can be used to provide a pressure signal to an external control
  • Includes glycerin filled gauge, G2536L
  • Can be used to provide pressure input to customer provided controls
  • Not to be used with LCD control
  • For pressure based input to the LCD control, use the ZPTU4 transducer
  • Includes 0-420 bar pressure gauge
