ZU4420SE

ZU4420SE

SKU: ZU4420SE Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure bar : 700

Series : ZU

Unit Height Shipping Oracle ERP : 31

Unit Length Shipping Oracle ERP : 25

Unit Width Shipping Oracle ERP : 20

Dimension A mm : 465

Dimension B mm : 180

Dimension C mm : 413

Dimension D mm : 422

Dimension E mm : 500

Dimension F mm : 396

Weight Kgs : 56

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,98 - 1,95

Hydraulic Pump Maximum Flowat Rated Pressure : 1,0 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Motor Electrical Specification : 208-240 V, 1 Ph, 50/60 Hz

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 1 Ph

Hydraulic Pump Motor Size Kw : 1,25

Hydraulic Pump Motor Voltage : 208-240 V

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 1,2

Hydraulic Pump Output Flow Rate 350 bar L min : 1,2

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 8,8

Hydraulic Pump Output Flow Rate 50 bar L min : 8,8

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 1,0

Hydraulic Pump Output Flow Rate 700 bar L min : 1,0

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 11,5

Hydraulic Pump Output Flow Rate 7 bar L min : 11,5

Hydraulic Pump Control : Pendant

Hydraulic Pump Power Source : Electric

Hydraulic Pump Relief Valve Adjustment Range bar : 140 - 700

Hydraulic Pump Reservoir Capacity cm3 : 20000

Hydraulic Pump Soleniod Valve Voltage : 24 VDC

Hydraulic Pump Sound Leveld Ba : 85 - 90

Hydraulic Pump Usable Oil Capacity Litres : 20,0

Hydraulic Pump Valve Function : Advance / Hold / Retract

Hydraulic Pump Valve Model : VE32

Hydraulic Pump Valve Operation : Solenoid

Hydraulic Pump Valve Solenoid Voltage : 24 VDC

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 1,0 l/min

Hydraulic Pump Valve Type : 4 way, 3 position

PLG: default Price Group List Price : 1

Description

  • Two-stage pump design provides high flow at low pressure for fast system fills and controlled flow at high pressure for safe and accurate operation
  • Z-Class high-efficiency pump design runs cooler and requires less current draw which is especially helpful in remote locations
  • 6 m pendant cord enables motor control from a distance
  • Angled 153 mm pressure gauge, with polycarbonate cover, built into a protective metal shroud for improved visibility and protection
  • Safety relief valve limits output pressure
  • Compact, lightweight and rugged aluminium frame for increased durability and ease of handling.

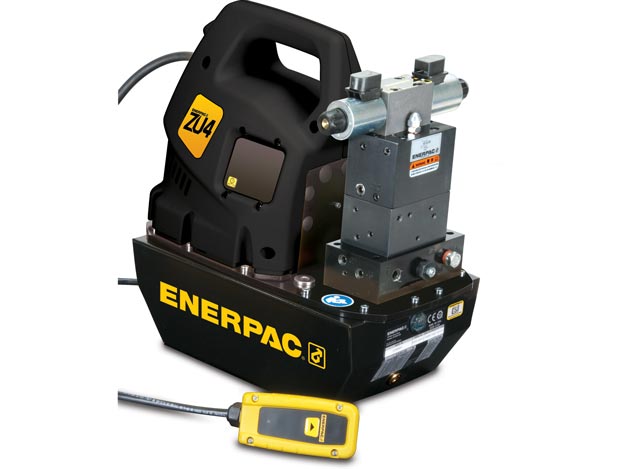

  • The Enerpac ZUTP-Series electric pump is ideally suited for use with hydraulic bolt tensioning tools and
    hydraulic nuts
  • This pump operates at ultra-high pressure, use only the specified fittings and hoses designed for these pressures
