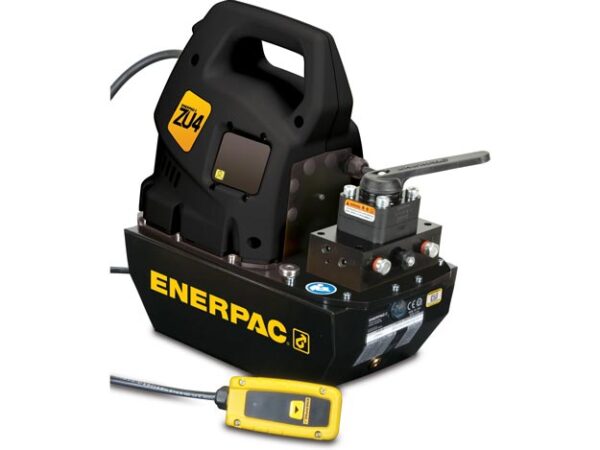

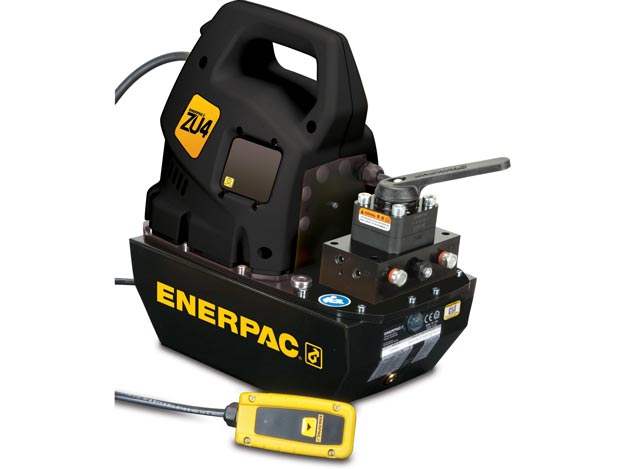

ZU4408LE

SKU: ZU4408LE Categories: , , Brand:

Maximum Operating Pressure bar : 700

Series : ZU

Dimension A mm : 424

Dimension B mm : 142

Dimension C mm : 279

Dimension D mm : 206

Weight Kgs : 32

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,98 - 1,95

Hydraulic Pump Maximum Flowat Rated Pressure : 1,0 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Motor Electrical Specification : 208-240 V, 1 Ph, 50/60 Hz

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 1 Ph

Hydraulic Pump Motor Size Kw : 1,25

Hydraulic Pump Motor Voltage : 208-240 V

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 1,2

Hydraulic Pump Output Flow Rate 350 bar L min : 1,2

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 8,8

Hydraulic Pump Output Flow Rate 50 bar L min : 8,8

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 1,0

Hydraulic Pump Output Flow Rate 700 bar L min : 1,0

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 11,5

Hydraulic Pump Output Flow Rate 7 bar L min : 11,5

Hydraulic Pump Control : Manual

Hydraulic Pump Power Source : Electric

Hydraulic Pump Relief Valve Adjustment Range bar : 140 - 700

Hydraulic Pump Reservoir Capacity cm3 : 8000

Hydraulic Pump Sound Leveld Ba : 85 - 90

Hydraulic Pump Usable Oil Capacity Litres : 8,0

Hydraulic Pump Valve Function : Advance / Hold / Retract

Hydraulic Pump Valve Model : VM43

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 1,0 l/min

Hydraulic Pump Valve Type : 4-way, 3-position, Tandem Center

PLG: default Price Group List Price : 1

Description

  • Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
  • Powerful 1,25 kW universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
  • High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
  • Pro-Series models only:
  • Back-lit LCD readout provides pressure display and a number of diagnostics and readout capabilities never offered on a portable pump before
  • – pump usage information, hour and cycle counts
  • – self-test, diagnostic and read-out capabilities
  • – pressure readout and auto-mode pressure settings
