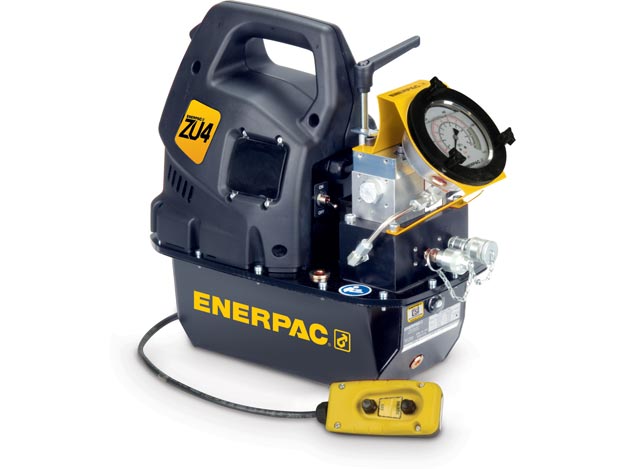

ZU4208BI-Q

SKU: ZU4208BI-Q Categories: , , Brand:

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : ZU4T

Unit Height Shipping Oracle ERP : 22

Unit Length Shipping Oracle ERP : 21

Unit Width Shipping Oracle ERP : 13

Compatible Products : HT1503,HT1510,HT1503HR,HT1510HR,B150,BR150,BH150,BW150AW,B150B

Weight Kgs : 36

Hydraulic Pump For Use With Torque Wrenches : All Wrenches

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 60 - 119

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,98 - 1,95

Hydraulic Pump Maximum Flowat Rated Pressure : 1,0 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Electrical Specification : 208-240 V, 1 Ph, 50/60 Hz

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 1 Ph

Hydraulic Pump Motor Size hp : 1.7

Hydraulic Pump Motor Voltage : 208-240 V

Hydraulic Pump Output Flow Rate 10000 Psi In 3min : 60

Hydraulic Pump Output Flow Rate 100 psi In 3min : 700

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 1,2

Hydraulic Pump Output Flow Rate 350 bar L min : 1,2

Hydraulic Pump Output Flow Rate 5000 Psi In 3 min : 76

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 8,8

Hydraulic Pump Output Flow Rate 50 bar L min : 8,8

Hydraulic Pump Output Flow Rate 700 Psi In 3 min : 535

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 1,0

Hydraulic Pump Output Flow Rate 700 bar L min : 1,0

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 11,5

Hydraulic Pump Output Flow Rate 7 bar L min : 11,5

Hydraulic Pump Power Source : Electric

Hydraulic Pump Relief Valve Adjustment Range bar : 124 - 700

Hydraulic Pump Reservoir Capacity cm3 : 8000

Hydraulic Pump Usable Oil capacity Gal : 1.75

Hydraulic Pump Usable Oil Capacity Litres : 8,0

Hydraulic Pump Valve Operation : Solenoid

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 1,0 l/min

Hydraulic Pump Valve Type : 4-way, 2-position

PLG: default Price Group List Price : 1

Description

  • Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
  • Powerful 1,25 kW universal electric motor provides high power-toweight ratio and excellent low-voltage operating characteristics
  • High-strength, molded composite shroud protects motor and electrical components, while providing an ergonomic, non-conductive handle for easy transport
  • Low-voltage pendant provides additional safety for the operator
  • Pro Series:
  • LCD readout provides pressure and torque display and a number of diagnostic and readout capabilities never before off ered on a portable electric pump
  • Auto cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed. (Pump can be used with or without auto cycle feature)

Additional information

Weight 37.8 kg
