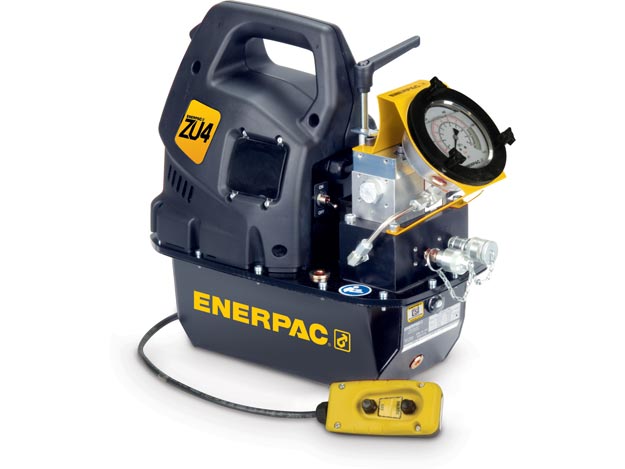

ZU4208BE-QH

SKU: ZU4208BE-QH Categories: , , Brand:

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : ZU4T

Unit Height Shipping Oracle ERP : 23

Unit Length Shipping Oracle ERP : 30

Unit Width Shipping Oracle ERP : 13

Compatible Products : HT1503,HT1510,HT1503HR,HT1510HR,B150,BR150,BH150,BW150AW,B150B

Weight Kgs : 38

Hydraulic Pump For Use With Torque Wrenches : All Wrenches

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 60 - 119

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,98 - 1,95

Hydraulic Pump Maximum Flowat Rated Pressure : 1,0 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Electrical Specification : 208-240 V, 1 Ph, 50/60 Hz

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 1 Ph

Hydraulic Pump Motor Size hp : 2

Hydraulic Pump Motor Voltage : 208-240 V

Hydraulic Pump Output Flow Rate 10000 Psi In 3min : 60

Hydraulic Pump Output Flow Rate 100 psi In 3min : 700

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 1,2

Hydraulic Pump Output Flow Rate 350 bar L min : 1,2

Hydraulic Pump Output Flow Rate 5000 Psi In 3 min : 76

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 8,8

Hydraulic Pump Output Flow Rate 50 bar L min : 8,8

Hydraulic Pump Output Flow Rate 700 Psi In 3 min : 535

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 1,0

Hydraulic Pump Output Flow Rate 700 bar L min : 1,0

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 11,5

Hydraulic Pump Output Flow Rate 7 bar L min : 11,5

Hydraulic Pump Power Source : Electric

Hydraulic Pump Relief Valve Adjustment Range bar : 124 - 700

Hydraulic Pump Reservoir Capacity cm3 : 8000

Hydraulic Pump Usable Oil capacity Gal : 1.75

Hydraulic Pump Usable Oil Capacity Litres : 8,0

Hydraulic Pump Valve Operation : Solenoid

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 1,0 l/min

Hydraulic Pump Valve Type : 4-way, 2-position

PLG: default Price Group List Price : 1

Description

  • Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
  • Powerful 1,25 kW universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
  • High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
  • Low-voltage pendant provides additional safety for the operator (remote control units)
  • Pro-Series models only:
  • Back-lit LCD readout provides pressure display and a number of diagnostics and readout capabilities never offered on a portable pump before
  • – pump usage information, hour and cycle counts
  • – self-test, diagnostic and read-out capabilities
  • – pressure readout and auto-mode pressure settings

Additional information

Weight 49 kg
