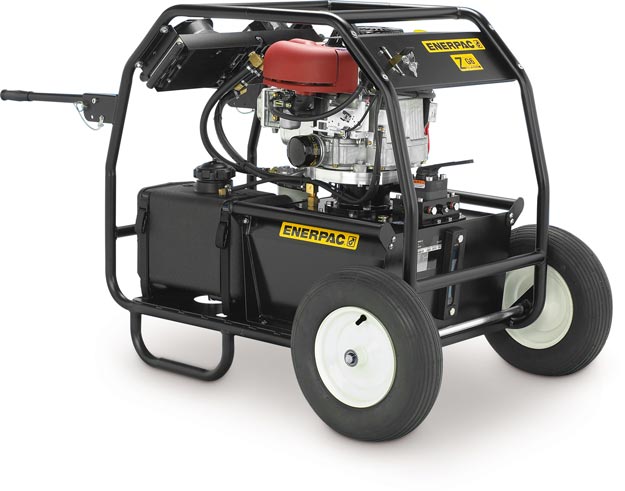

ZG6440MX-BCFH

ZG6440MX-BCFH

SKU: ZG6440MX-BCFH Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : ZG6

Unit Height Shipping Oracle ERP : 44

Unit Length Shipping Oracle ERP : 51

Unit Width Shipping Oracle ERP : 36

Weight Kgs : 152

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Dimension Lx Wx H mm : 1205 x 840 x 935

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 120 - 200

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : > 3,27

Hydraulic Pump Maximum Flowat Rated Pressure : 3,3 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Manufacturer : Briggs & Stratton

Hydraulic Pump Output Flow Rate 10000 Psi In 3min : 200

Hydraulic Pump Output Flow Rate 100 psi In 3min : 900

Hydraulic Pump Output Flow Rate 1 bar l min : 14,7

Hydraulic Pump Output Flow Rate 5000 Psi In 3 min : 225

Hydraulic Pump Output Flow Rate 700 Psi In 3 min : 885

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 3,3

Hydraulic Pump Output Flow Rate 700 bar L min : 3,3

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 14,7

Hydraulic Pump Output Flow Rate 7 bar L min : 14,7

Hydraulic Pump Control : Manual

Hydraulic Pump Power Source : Gasoline

Hydraulic Pump Relief Valve Adjustment Range Psi : 1,000 - 10,000

Hydraulic Pump Reservoir Capacity cm3 : 40000

Hydraulic Pump Sound Leveld Ba : 91 - 95

Hydraulic Pump Usable Oil capacity Gal : 10

Hydraulic Pump Usable Oil Capacity Litres : 40

Hydraulic Pump Valve Function : Advance / Hold / Retract

Hydraulic Pump Valve Model : VM43

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 3.3

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 3,3 l/min

Hydraulic Pump Valve Type : 4-way, 3-position, Tandem Center

PLG: default Price Group List Price : 1

Description

  • Protects pump
  • Provides greater pump stability
  • Add suffix R for factory installation.

Additional information

Weight 186.8 kg
