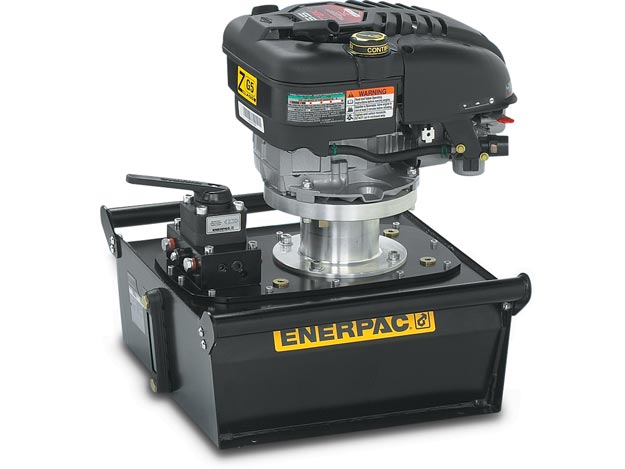

ZG5420MX-BR

ZG5420MX-BR

SKU: ZG5420MX-BR Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : ZG5

Unit Height Shipping Oracle ERP : 34

Unit Length Shipping Oracle ERP : 31

Unit Width Shipping Oracle ERP : 25

Dimension B mm : 180

Dimension C mm : 414

Dimension D mm : 421

Dimension E mm : 500

Dimension H mm : 625

Weight Kgs : 63

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 60 - 119

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,98 - 1,95

Hydraulic Pump Maximum Flowat Rated Pressure : 1,6 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Manufacturer : Briggs & Stratton

Hydraulic Pump Motor Size Kw : 4,8

Hydraulic Pump Output Flow Rate 10000 Psi In 3min : 100

Hydraulic Pump Output Flow Rate 100 psi In 3min : 400

Hydraulic Pump Output Flow Rate 1 bar l min : 6,6

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 1,8

Hydraulic Pump Output Flow Rate 350 bar L min : 1,8

Hydraulic Pump Output Flow Rate 5000 Psi In 3 min : 110

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 6,2

Hydraulic Pump Output Flow Rate 50 bar L min : 6,2

Hydraulic Pump Output Flow Rate 700 Psi In 3 min : 380

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 1,6

Hydraulic Pump Output Flow Rate 700 bar L min : 1,6

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 6,5

Hydraulic Pump Output Flow Rate 7 bar L min : 6,5

Hydraulic Pump Control : Manual

Hydraulic Pump Power Source : Gasoline

Hydraulic Pump Relief Valve Adjustment Range Psi : 1,000 - 10,000

Hydraulic Pump Relief Valve Adjustment Range bar : 70-700

Hydraulic Pump Reservoir Capacity cm3 : 20000

Hydraulic Pump Sound Leveld Ba : 88 - 93

Hydraulic Pump Usable Oil capacity Gal : 5

Hydraulic Pump Usable Oil Capacity Litres : 20

Hydraulic Pump Valve Function : Advance / Hold / Retract

Hydraulic Pump Valve Model : VM43

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1.6

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 1,6 l/min

Hydraulic Pump Valve Type : 4-way, 3-position, Tandem Center

PLG: default Price Group List Price : 1

Description

  • The oil filter kit removes contaminants from the return oil flow before allowing it back into the reservoir, reducing component damage
  • 25 micron nominal filter cleans oil to increase system life
  • Internal bypass valve to prevent damage if the filter is dirty
  • All installation components included
  • Kit assembles quickly and easily to Enerpac pump and manifold
  • Maintenance indicator included
