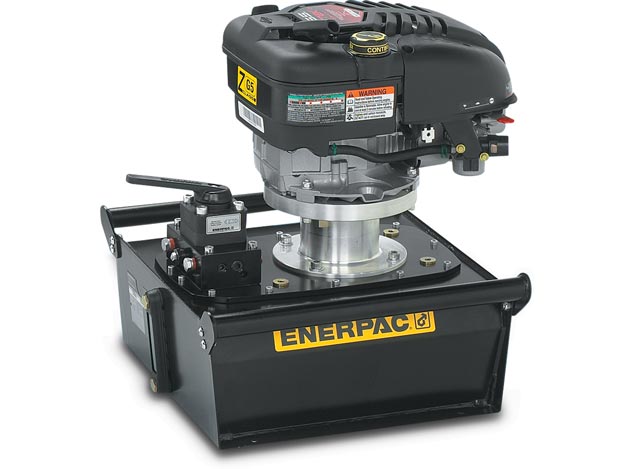

ZG5410MX-BR

ZG5410MX-BR

SKU: ZG5410MX-BR Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : ZG5

Unit Height Shipping Oracle ERP : 34

Unit Length Shipping Oracle ERP : 31

Unit Width Shipping Oracle ERP : 25

Dimension B mm : 155

Dimension C mm : 419

Dimension D mm : 305

Dimension E mm : 384

Dimension H mm : 600

Weight Kgs : 50

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 60 - 119

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,98 - 1,95

Hydraulic Pump Maximum Flowat Rated Pressure : 1,6 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Manufacturer : Briggs & Stratton

Hydraulic Pump Motor Size Kw : 4,8

Hydraulic Pump Output Flow Rate 10000 Psi In 3min : 100

Hydraulic Pump Output Flow Rate 100 psi In 3min : 400

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 1,8

Hydraulic Pump Output Flow Rate 350 bar L min : 1,8

Hydraulic Pump Output Flow Rate 5000 Psi In 3 min : 110

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 6,2

Hydraulic Pump Output Flow Rate 50 bar L min : 6,2

Hydraulic Pump Output Flow Rate 700 Psi In 3 min : 380

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 1,6

Hydraulic Pump Output Flow Rate 700 bar L min : 1,6

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 6,5

Hydraulic Pump Output Flow Rate 7 bar L min : 6,5

Hydraulic Pump Control : Manual

Hydraulic Pump Power Source : Gasoline

Hydraulic Pump Relief Valve Adjustment Range Psi : 1,000 - 10,000

Hydraulic Pump Relief Valve Adjustment Range bar : 70-700

Hydraulic Pump Reservoir Capacity cm3 : 10000

Hydraulic Pump Sound Leveld Ba : 88 - 93

Hydraulic Pump Usable Oil capacity Gal : 2.5

Hydraulic Pump Usable Oil Capacity Litres : 10

Hydraulic Pump Valve Function : Advance / Hold / Retract

Hydraulic Pump Valve Model : VM43

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1.6

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 1,6 l/min

Hydraulic Pump Valve Type : 4-way, 3-position, Tandem Center

PLG: default Price Group List Price : 1

Description

  • Features Z-Class high efficency pump:
    – Higher oil flow and bypass pressure
    – Patented balanced rotating pump components to reduce vibration
    – Replaceable piston check valves that increase service life of pump components
  • Two-speed operation reduces cycle time for improved productivity
  • Easy serviceable 9,7 kW, 4-cycle gasoline engine with electric start and 12 Volt charge output for accessories
  • Dual forced air heat exchangers stabilizes hydraulic oil temperature
  • Roll cage for easy portability, protects pump
  • Sturdy wheeled cart with collapsible handles
  • Full sight oil level glass on all reservoirs allow quick and easy oil level monitoring
