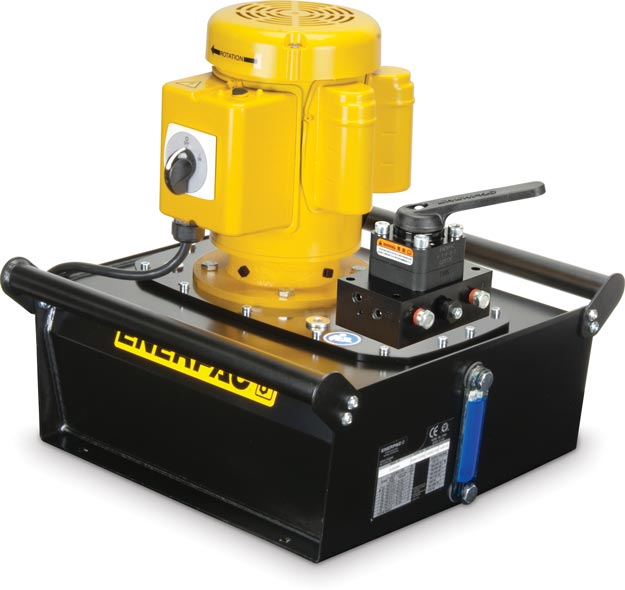

ZE6840LW

ZE6840LW

SKU: ZE6840LW Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure bar : 700

Series : ZE

Dimension A mm : 648

Dimension B mm : 270

Dimension C mm : 399

Dimension D mm : 505

Dimension E mm : 576

Dimension F mm : 572

Dimension H mm : 715

Weight Kgs : 115

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 1,96 - 3,27

Hydraulic Pump Maximum Flowat Rated Pressure : 2,73 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Motor Electrical Specification : 380-415 V, 3 Ph, 50-60 Hz

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 3 Ph

Hydraulic Pump Motor Size Kw : 5,60

Hydraulic Pump Motor Voltage : 380-415 V

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 2,86

Hydraulic Pump Output Flow Rate 350 bar L min : 2,86

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 12,15

Hydraulic Pump Output Flow Rate 50 bar L min : 12,15

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 2,73

Hydraulic Pump Output Flow Rate 700 bar L min : 2,73

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 12,29

Hydraulic Pump Output Flow Rate 7 bar L min : 12,29

Hydraulic Pump Control : Manual

Hydraulic Pump Power Source : Electric

Hydraulic Pump Relief Valve Adjustment Range bar : 70 - 700

Hydraulic Pump Reservoir Capacity cm3 : 40000

Hydraulic Pump Sound Leveld Ba : 80

Hydraulic Pump Usable Oil Capacity Litres : 40,0

Hydraulic Pump Valve Function : Advance / Hold / Retract

Hydraulic Pump Valve Model : VM43L

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 2.73

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 2,73 l/min

Hydraulic Pump Valve Type : 4-way, 3-position, Tandem Center, Locking

PLG: default Price Group List Price : 1

Description

  • Features Z-Class high efficiency pump design, higher oil flow and bypass pressure
  • Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
  • Full sight oil level glass on all reservoirs allows quick and easy oil level monitoring
  • Available in two 4-cycle engine sizes: 4,1 kW Honda and 4,8 kW Briggs and Stratton
