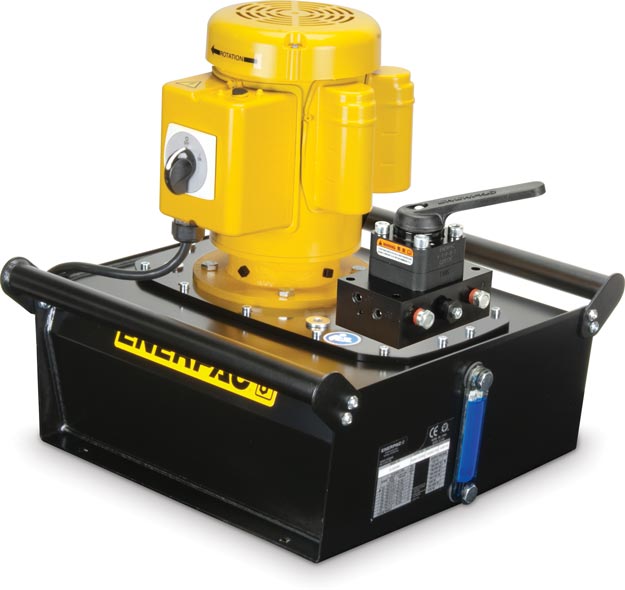

ZE4040NW

ZE4040NW

SKU: ZE4040NW Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure bar : 700

Series : ZE

Unit Height Shipping Oracle ERP : 34

Unit Length Shipping Oracle ERP : 31

Unit Width Shipping Oracle ERP : 25

Dimension A mm : 648

Dimension B mm : 270

Dimension C mm : 399

Dimension D mm : 505

Dimension E mm : 576

Dimension F mm : 572

Dimension H mm : 715

Weight Kgs : 84

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,65 - 0,97

Hydraulic Pump Maximum Flowat Rated Pressure : 0,82 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Motor Electrical Specification : 380-415 V, 3 Ph, 50-60 Hz

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 3 Ph

Hydraulic Pump Motor Size Kw : 1,12

Hydraulic Pump Motor Voltage : 380-415 V

Hydraulic Pump Output Flow Rate 350 bar In 3 min : 0,84

Hydraulic Pump Output Flow Rate 350 bar L min : 0,84

Hydraulic Pump Output Flow Rate 50 bar In 3 min : 8,20

Hydraulic Pump Output Flow Rate 50 bar L min : 8,20

Hydraulic Pump Output Flow Rate 700 bar In 3 min : 0,82

Hydraulic Pump Output Flow Rate 700 bar L min : 0,82

Hydraulic Pump Output Flow Rate 7 bar In 3 min : 8,88

Hydraulic Pump Output Flow Rate 7 bar L min : 8,88

Hydraulic Pump Power Source : Electric

Hydraulic Pump Reservoir Capacity cm3 : 40,000

Hydraulic Pump Sound Leveld Ba : 75

Hydraulic Pump Usable Oil Capacity Litres : 40,0

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 0.82

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 0,82 l/min

PLG: default Price Group List Price : 1

Description

  • Auto-Cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed (pump can be used with or without auto cycle feature)
  • LCD readout provides pressure and torque display and a number of diagnostic and readout capabilities never before offered on a portable electric pump
  • Totally enclosed, fan-cooled industrial electric motors supply extended life and stand up to harsh industrial environments – High-strength, molded electrical enclosure protects electronics, power supplies and L CD readout from harsh environments.
  • High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh environments.
  • Factory installed heat exchanger and roll cage
  • Flow rate will be approximately 6/5 higher at 60 Hz.
  • Larger reservoirs (8, 10, 20 and 40 litres) are available. Contact Enerpac.
