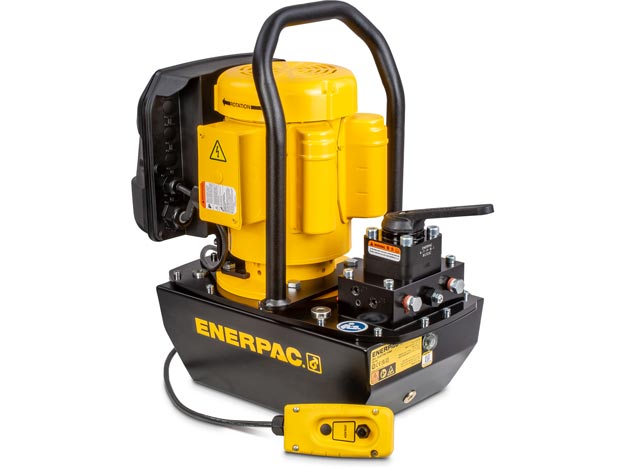

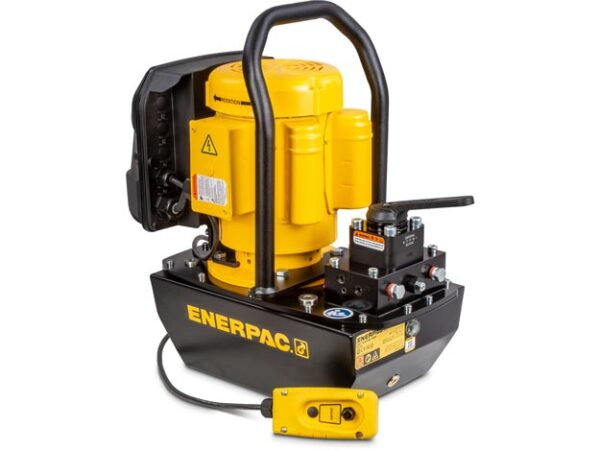

ZE2408EE

ZE2408EE

SKU: ZE2408EE Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : ZE

Height Dimension mm : 518

Length Dimension mm : 491

Unit weight : 108.1

Weight Kgs : 49,0

Width Dimension mm : 279

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Hertz : 50/60 Hz

Hydraulic Pump Motor Phases : 1 Ph

Hydraulic Pump Motor Size hp : 0.75

Hydraulic Pump Motor Size Kw : 0,56

Hydraulic Pump Motor Voltage : 208-240 V

Hydraulic Pump Output Flow Rate No Load In 3 min : 200

Hydraulic Pump Output Flow Rate No Load L min : 2,7

Hydraulic Pump Pressure Rating 2nd Stage bar : 700

Hydraulic Pump Pressure Rating 2nd Stage Psi : 10,000

Hydraulic Pump Control : Pendant

Hydraulic Pump Power Source : Electric

Hydraulic Pump Reservoir Capacity Litres : 8

Hydraulic Pump Reservoir Capacity cm3 : 8000

Hydraulic Pump Reservoir Capacity gal : 2

Hydraulic Pump Soleniod Valve Voltage : 24VDC

Hydraulic Pump Sound Leveld Ba : 79

Hydraulic Pump Usable Oil capacity Gal : 1.8

Hydraulic Pump Usable Oil Capacity Litres : 6,8

Hydraulic Pump Valve Function : Advance / Hold / Retract

Hydraulic Pump Valve Model : VE43

Hydraulic Pump Valve Operation : Solenoid

Hydraulic Pump Valve Type and Pump Operation : 4-way, 3-position, Tandem Center, Locking

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 0.27

PLG: default Price Group List Price : 1

Description

  • High-efficiency pump design – higher oil flow and by-pass pressure
  • High-strength, moulded electrical box protects electronics, power supplies and LCD readout and stands up to harsh industrial environments
  • IP54 protection and isolation class
  • Back-lit LCD provides self test, diagnostic and read-out capabilities never before offered on an industrial pump (included on pump with electric valves, optional on other models)
  • Totally enclosed, fan-cooled industrial electric motors for extended life
  • User adjustable relief valve built-in on manual and solenoid valves. Oil ports on valves are 3/8″ NPTF
  • Steel fan guard on all electric motors
  • Full sight oil level glass
  • 40 micron filter breather with splash guard
  • Durable steel reservoirs
