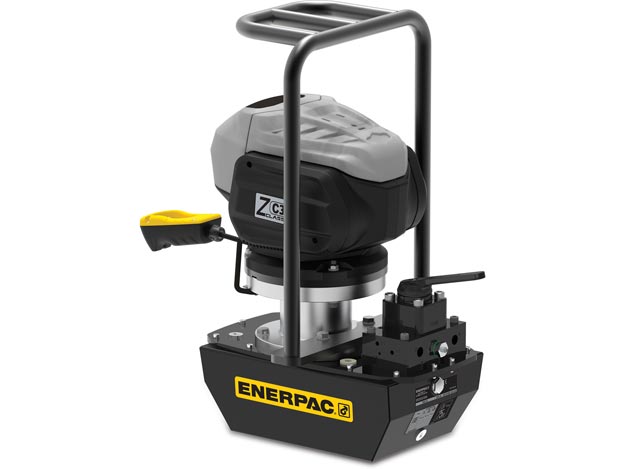

ZC3408JE

ZC3408JE

SKU: ZC3408JE Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : ZC

Weight Kgs : 29,7

Hydraulic Pump Charger Voltage VAC : 230

Hydraulic Pump Cylinder Compatability : Double-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 21 - 39

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure L min : 0,35 - 0,64

Hydraulic Pump Maximum Flowat Rated Pressure : 0,52 l/min

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Motor Size hp : 1

Hydraulic Pump Motor Size Kw : 1,0

Hydraulic Pump Number Of Outlets : 2

Hydraulic Pump Output Flow Rate 700 bar L min : 0,52

Hydraulic Pump Output Flow Rate Load In 3 Min : 32

Hydraulic Pump Output Flow Rate Load L min : 0,52

Hydraulic Pump Output Flow Rate No Load In 3 min : 310

Hydraulic Pump Output Flow Rate No Load L min : 5,08

Hydraulic Pump Control : Pendant

Hydraulic Pump Power Source : Battery

Hydraulic Pump Reservoir Capacity Litres : 6,6

Hydraulic Pump Reservoir Capacity cm3 : 6600

Hydraulic Pump Reservoir Capacity gal : 2

Hydraulic Pump Reservoir Size Ranges Gallons : 1 - 1.99

Hydraulic Pump Reservoir Size Ranges Liters : 4,0 - 7,9

Hydraulic Pump Usable Oil capacity Gal : 1.75

Hydraulic Pump Usable Oil Capacity Litres : 6,6

Hydraulic Pump Valve Function : Advance / Neutral / Retract

Hydraulic Pump Valve Model : VM43

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 1

Hydraulic Pump Output Flow Rate 276 bar L min : 1,31

Hydraulic Pump Output Flow Rate 4000 Psi In 3 min : 80

Hydraulic Pump Valve Type : 4-way, 3-position, Tandem Center

Hydraulic Pump Weight Range Kgs : 25,0 - 49,9

PLG: default Price Group List Price : 1

Description

  • 0,56 kW induction motor for long life and quiet operation
  • 71 to 79 dBA across the pressure range
  • 6,8 liter, steel hydraulic oil reservoir offers capacity and cool operation for wide range of applications
  • IP54 protection
  • Heavy duty bearings extend pump life by reducing heat, improving lubrication and reducing wear
  • Replaceable piston check valves increase service life of major pump components

Additional information

Weight 45 kg
