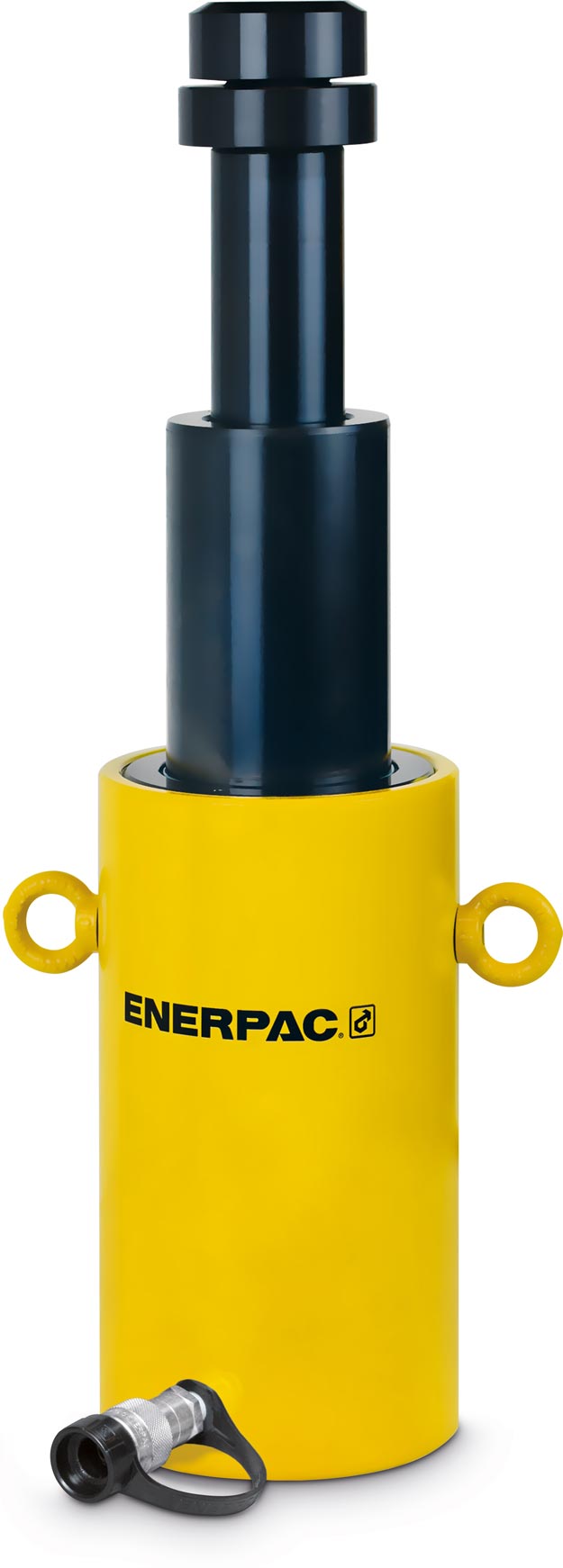

RT3311

RT3311

SKU: RT3311 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : RT

Stroke mm : 300

Dimension K mm : 66

Weight Kgs : 39,9

Hydraulic Cylinders Base to Advance Port H mm : 25

Hydraulic Cylinders Collapsed Height A mm : 352

Hydraulic Cylinders Extended Height B mm : 652

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 309

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 160

Hydraulic Cylinders Saddle Diameter J1 mm : 80

Hydraulic Cylinders Stage 1 Capacity Kn : 792

Hydraulic Cylinders Stage 1 Stroke S1 mm : 150

Hydraulic Cylinders Stage 2 Capacity kn : 309

Hydraulic Cylinders Stage 2 Stroke S2 mm : 150

Hydraulic Cylinders Stage 3 Stroke S3 mm : -

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders Dimension L mm : 89

Hydraulic Cylinders Oil Capacity Advance Cm3 : 2359

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Saddle Diameter J mm : 80

Hydraulic Cylinders Stroke Ranges mm : 290 - 379

PLG: default Price Group List Price : 1

Additional information

Weight 42 kg
