Maximum Operating Pressure psi : 10,000
Maximum Operating Pressure bar : 700

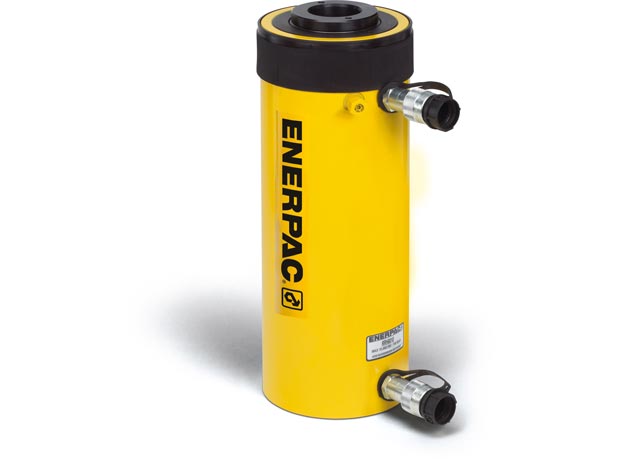

Series : RRH
Stroke mm : 166
Unit Height Shipping Oracle ERP : 11
Unit Length Shipping Oracle ERP : 18
Unit Width Shipping Oracle ERP : 12
Weight Kgs : 35
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 130,0
Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 14,0
Hydraulic Cylinders Base Mounting Holes Thread V : ½†- 13
Hydraulic Cylinders Base to Advance Port H mm : 31
Hydraulic Cylinders Center Hole Diameter Y mm : 53,8
Hydraulic Cylinders Collapsed Height A mm : 323
Hydraulic Cylinders Collar Thread Length X mm : 48
Hydraulic Cylinders Collar Thread W mm : 6¼"- 12
Hydraulic Cylinders Cylinder Bore Diameter E mm : 123,9
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 82,3
Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 54,2
Hydraulic Cylinders Extended Height B mm : 489
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 576
Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 380
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Outside Diameter D mm : 159
Hydraulic Cylinders Plunger Diameter F mm : 91,9
Hydraulic Cylinders Plunger Thread Length P mm : 19
Hydraulic Cylinders Saddle Diameter J1 mm : 91
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 12
Hydraulic Cylinders Top To Retract Port I mm : 66
Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381
Hydraulic Cylinders Oil Capacity Advance Cm3 : 1366
Hydraulic Cylinders Oil Capacity Retract Cm3 : 900
Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return
Hydraulic Cylinders Saddle Diameter J mm : 91
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 12
Hydraulic Cylinders Stroke Ranges mm : 120 - 174
PLG: default Price Group List Price : 1
