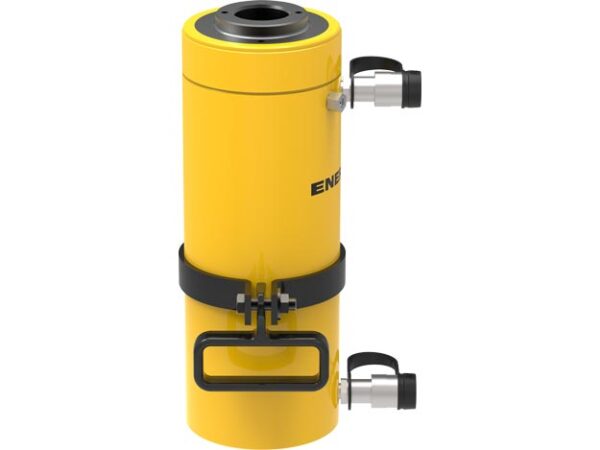

RRH6010

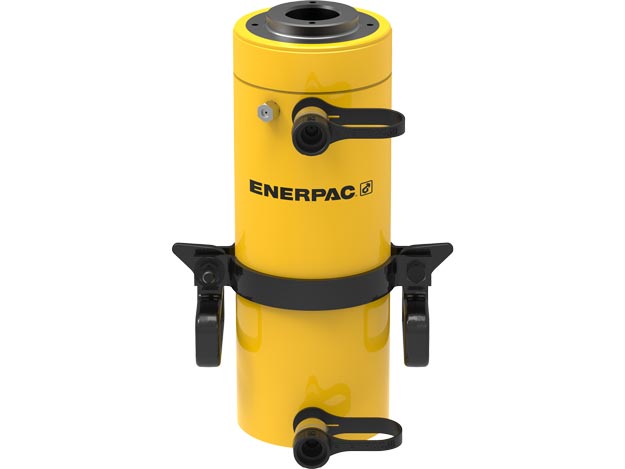

RRH6010 - Image 2

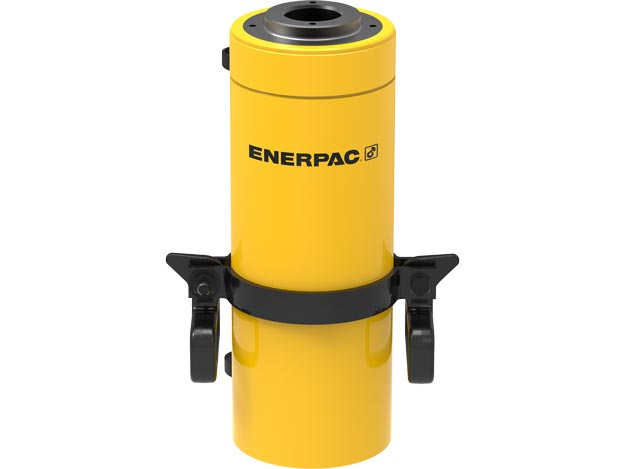

RRH6010 - Image 3

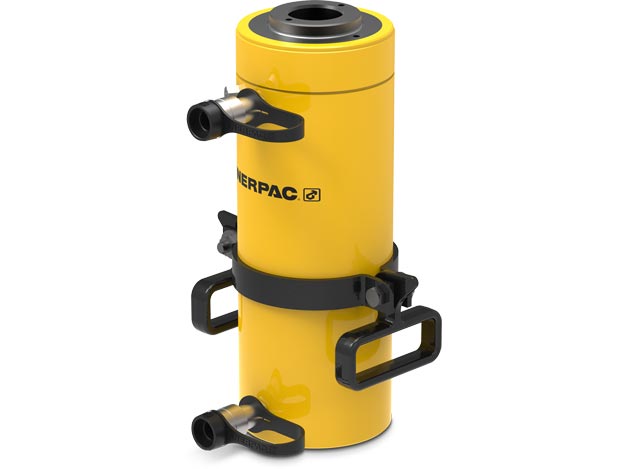

RRH6010 - Image 4

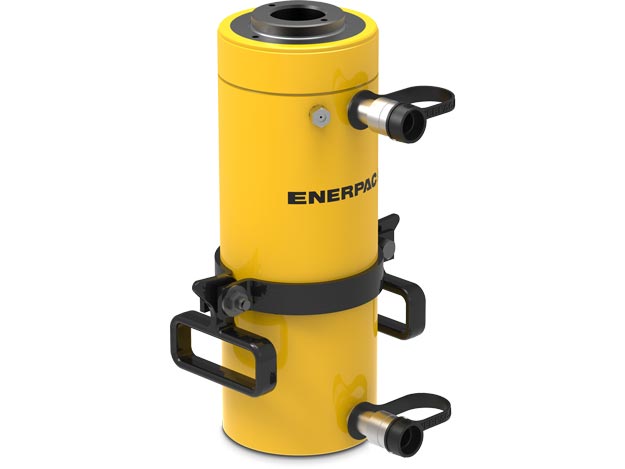

RRH6010 - Image 5

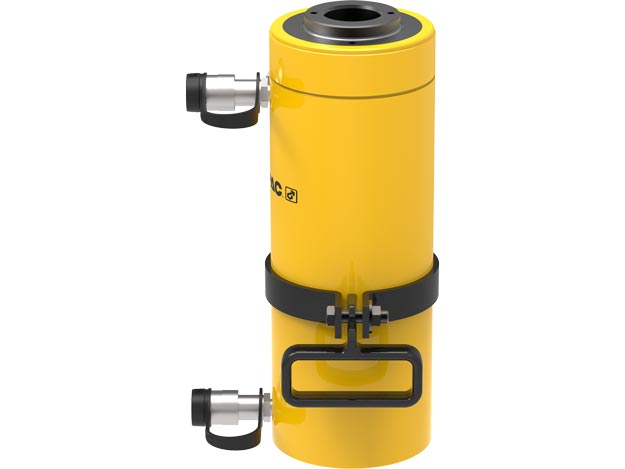

RRH6010 - Image 6

RRH6010

SKU: RRH6010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RRH

Stroke mm : 257

Unit Height Shipping Oracle ERP : 10

Unit Length Shipping Oracle ERP : 18

Unit Width Shipping Oracle ERP : 12

Weight Kgs : 45

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 130,0

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 14,0

Hydraulic Cylinders Base Mounting Holes Thread V : ½” - 13

Hydraulic Cylinders Base to Advance Port H mm : 31

Hydraulic Cylinders Center Hole Diameter Y mm : 53,8

Hydraulic Cylinders Collapsed Height A mm : 438

Hydraulic Cylinders Collar Thread Length X mm : 48

Hydraulic Cylinders Collar Thread W mm : 6¼"- 12

Hydraulic Cylinders Cylinder Bore Diameter E mm : 123,9

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 82,3

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 54,2

Hydraulic Cylinders Extended Height B mm : 695

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 576

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 380

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 159

Hydraulic Cylinders Plunger Diameter F mm : 91,9

Hydraulic Cylinders Plunger Thread Length P mm : 19

Hydraulic Cylinders Saddle Diameter J1 mm : 91

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 12

Hydraulic Cylinders Top To Retract Port I mm : 66

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 2115

Hydraulic Cylinders Oil Capacity Retract Cm3 : 1393

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 91

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 12

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1

Description

  • Long cylinder strokes in confined space
  • Nitrocarburized treatment for extreme conditions
  • 3% side-load of full capacity
  • Standard tilting saddle on all models

Additional information

Weight 51.394 kg
