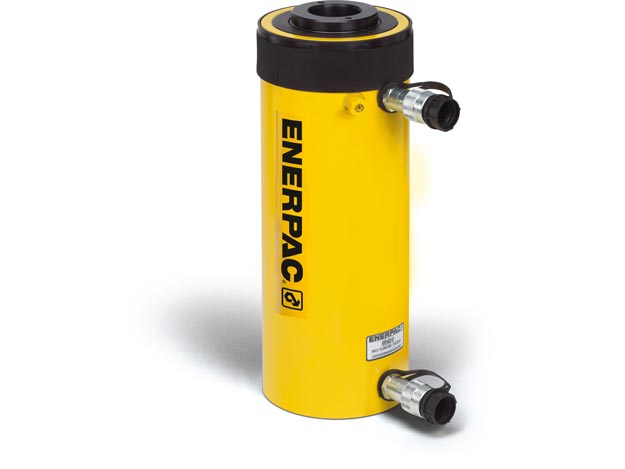

RRH3010

RRH3010

SKU: RRH3010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RRH

Stroke mm : 258

Unit Height Shipping Oracle ERP : 8

Unit Length Shipping Oracle ERP : 6

Unit Width Shipping Oracle ERP : 21

Weight Kgs : 27

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 92,2

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 15,7

Hydraulic Cylinders Base Mounting Holes Thread V : 3/8” - 16

Hydraulic Cylinders Base to Advance Port H mm : 25

Hydraulic Cylinders Center Hole Diameter Y mm : 33,3

Hydraulic Cylinders Collapsed Height A mm : 431

Hydraulic Cylinders Collar Thread Length X mm : 42

Hydraulic Cylinders Collar Thread W mm : 4½"- 12

Hydraulic Cylinders Cylinder Bore Diameter E mm : 88,9

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 46,6

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 30,4

Hydraulic Cylinders Extended Height B mm : 689

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 326

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 213

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 114

Hydraulic Cylinders Plunger Diameter F mm : 63,5

Hydraulic Cylinders Plunger Thread Length P mm : 22

Hydraulic Cylinders Saddle Diameter J1 mm : 63

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 9

Hydraulic Cylinders Top To Retract Port I mm : 60

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 1202

Hydraulic Cylinders Oil Capacity Retract Cm3 : 784

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 63

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 9

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1

Description

  • Long cylinder strokes in confined space
  • Nitrocarburized treatment for extreme conditions
  • 3% side-load of full capacity
  • Standard tilting saddle on all models

Additional information

Weight 31 kg
