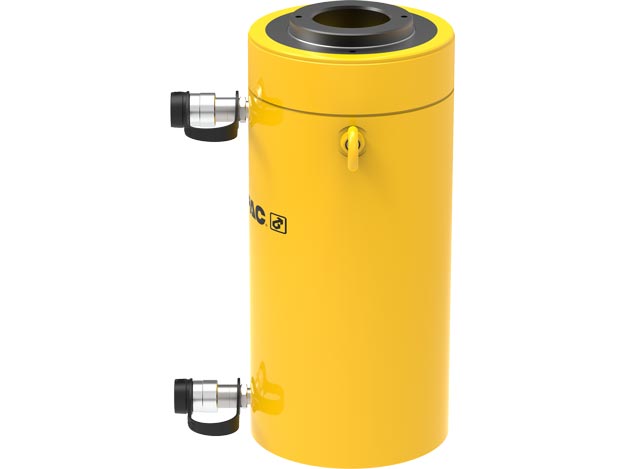

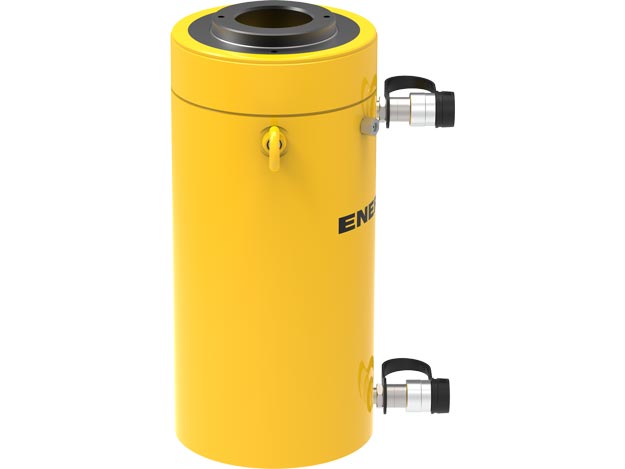

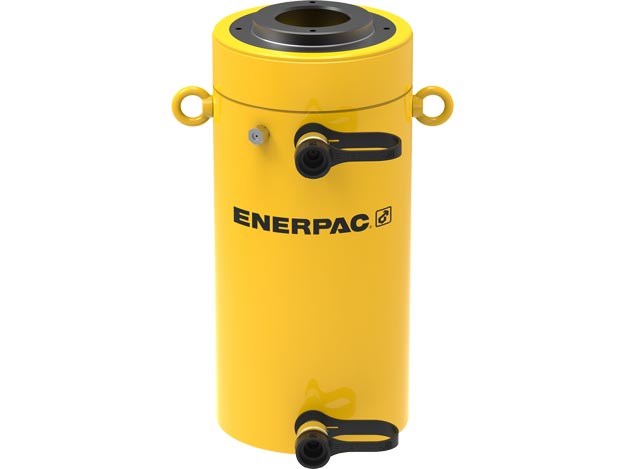

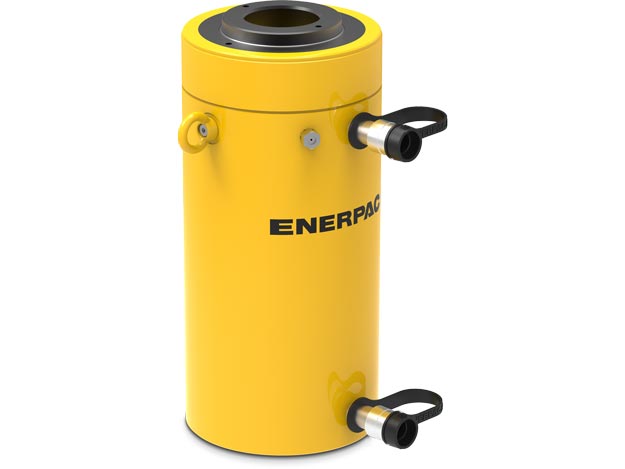

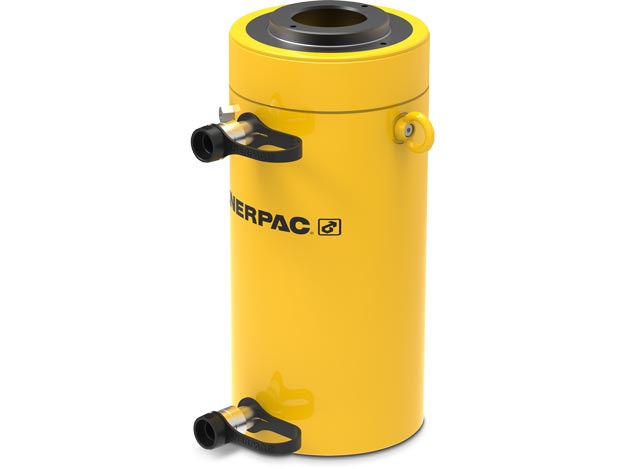

RRH10010

SKU: RRH10010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RRH

Stroke mm : 257

Unit Height Shipping Oracle ERP : 11

Unit Length Shipping Oracle ERP : 21

Unit Width Shipping Oracle ERP : 14

Weight Kgs : 106

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 177,8

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 19,0

Hydraulic Cylinders Base Mounting Holes Thread V : 5/8” - 11

Hydraulic Cylinders Base to Advance Port H mm : 38

Hydraulic Cylinders Center Hole Diameter Y mm : 79,2

Hydraulic Cylinders Collapsed Height A mm : 460

Hydraulic Cylinders Collar Thread Length X mm : 60

Hydraulic Cylinders Collar Thread W mm : 8 3/8"- 12

Hydraulic Cylinders Cylinder Bore Diameter E mm : 165,1

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 133,0

Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 87,4

Hydraulic Cylinders Extended Height B mm : 717

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 931

Hydraulic Cylinders Maximum Cylinder Capacity Retract kn : 612

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 212

Hydraulic Cylinders Plunger Diameter F mm : 127,0

Hydraulic Cylinders Plunger Thread Length P mm : 25

Hydraulic Cylinders Saddle Diameter J1 mm : 126

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 12

Hydraulic Cylinders Top To Retract Port I mm : 85

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 3420

Hydraulic Cylinders Oil Capacity Retract Cm3 : 2246

Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return

Hydraulic Cylinders Saddle Diameter J mm : 126

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 12

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1

Description

  • RSQ steel square drive heads (cassettes) attach to compatible RSL Drive Units to make a complete square drive hydraulic torque wrench.
  • For heavy use and enduring durability, RSQ-Series Square Drive Heads (Cassettes) are constructed from robust steel and are easily fixed to the RSL Drive Unit using two Allen Key Bolts.
  • The various sizes available give you the versatility to complete a wide range of bolting applications.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 104 kg
