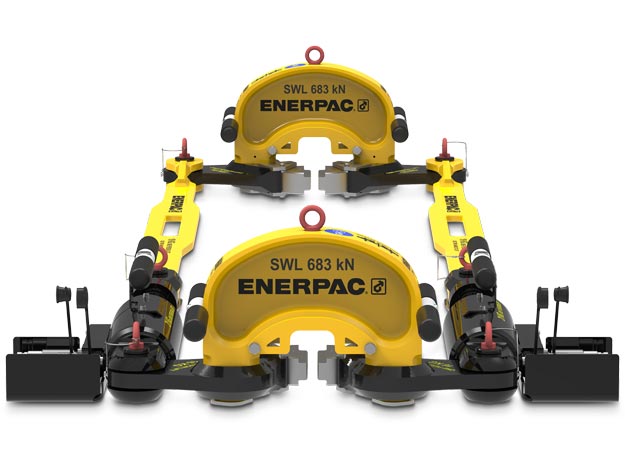

RP70A

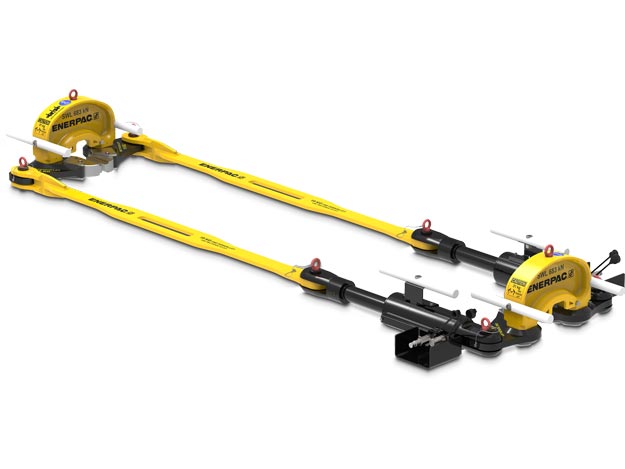

RP70A - Image 2

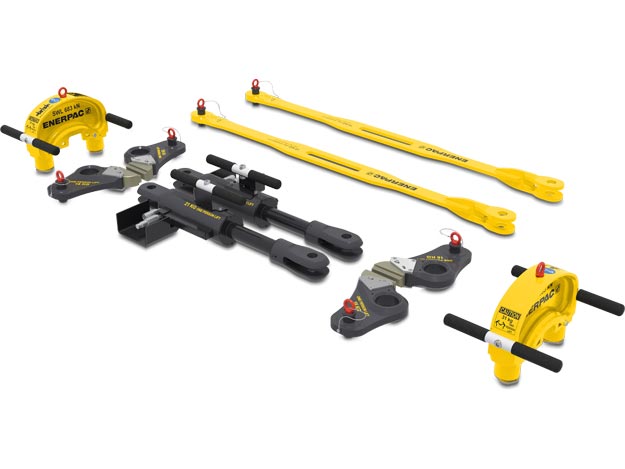

RP70A - Image 3

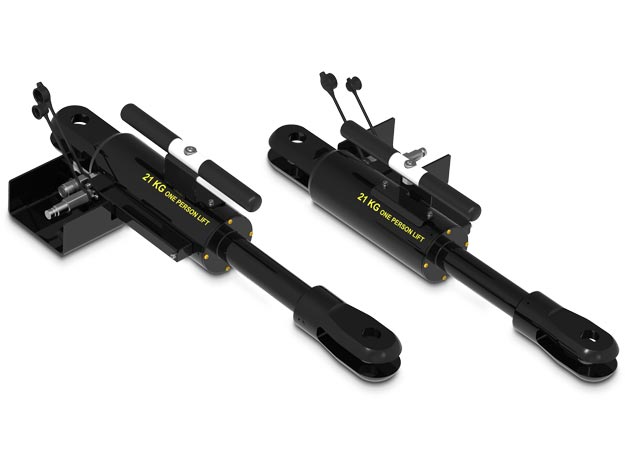

RP70A - Image 4

RP70A

SKU: RP70A Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 8400

Series : RP

Stroke mm : 205

Capacity KN : 683

Compatible Products : ZC3404JB-RS,ZC3404JE-RS

Dimension A mm : 2950

Dimension B mm : 3155

Dimension C mm : 1056

Dimension D mm : 361

Height Dimension mm : 361

Length Dimension mm : 2950

Weight Kgs : 205

Width Dimension mm : 1056

Rail Puller capacity Pull KN : 683

Rail Puller capacity Push KN : 440

PLG: default Price Group List Price : 1

Description

  • Collar threads, plunger threads and base mounting holes for easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over-pressurization
  • Plunger wiper reduces contamination, extending cylinder life
  • CR400 included on all models

Additional information

Weight 205 kg
