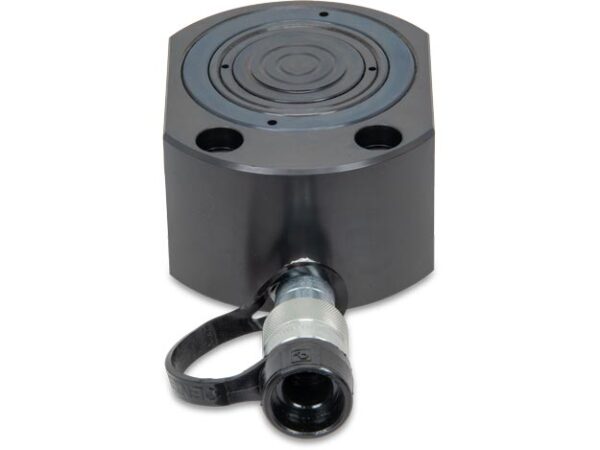

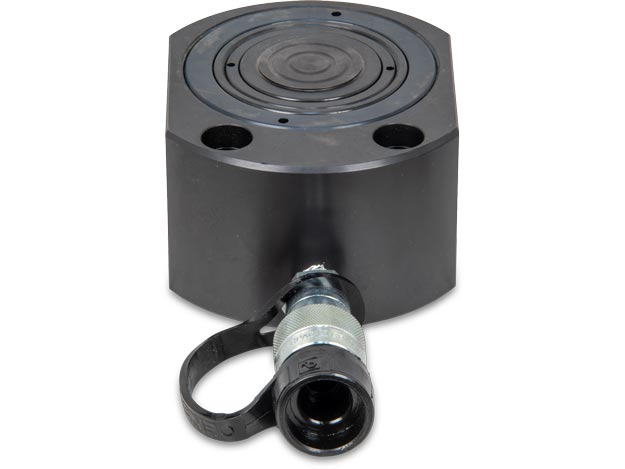

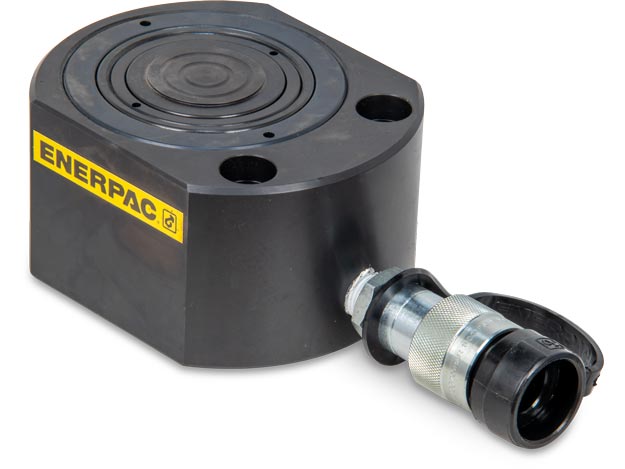

RLT230

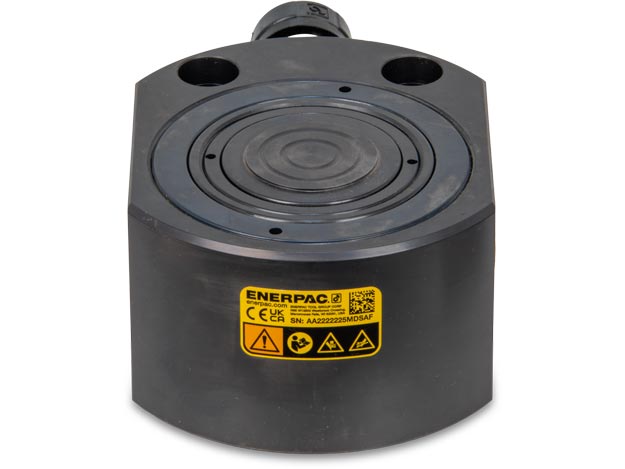

RLT230 - Image 2

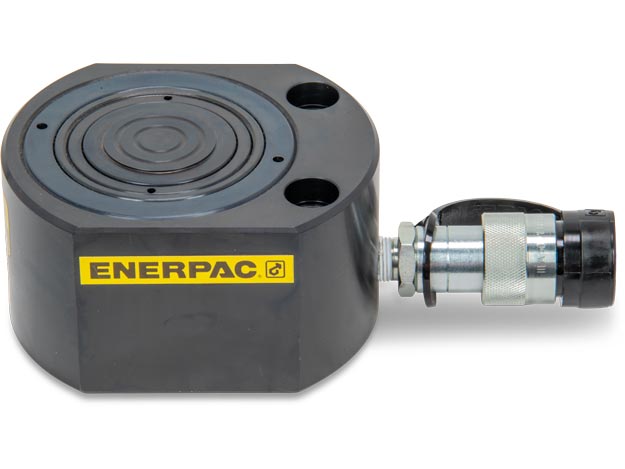

RLT230 - Image 3

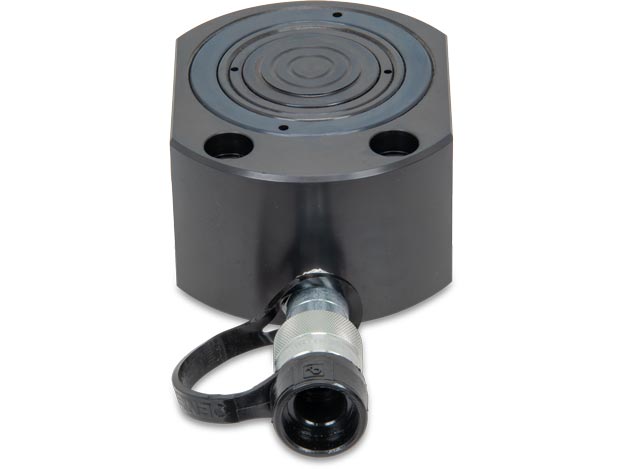

RLT230 - Image 4

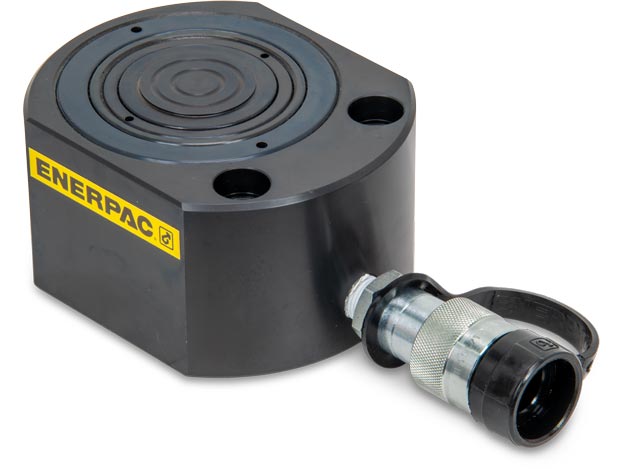

RLT230 - Image 5

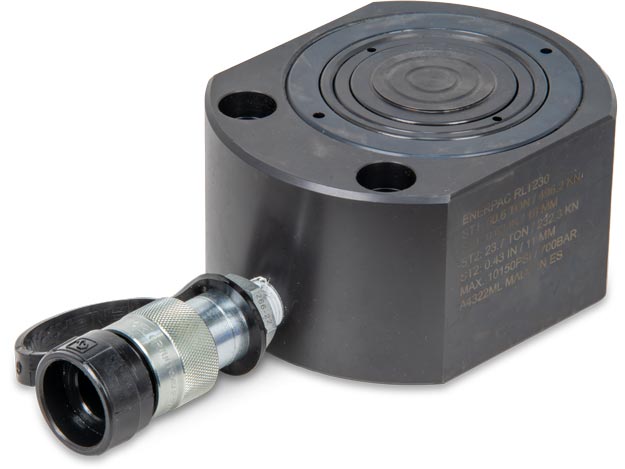

RLT230 - Image 6

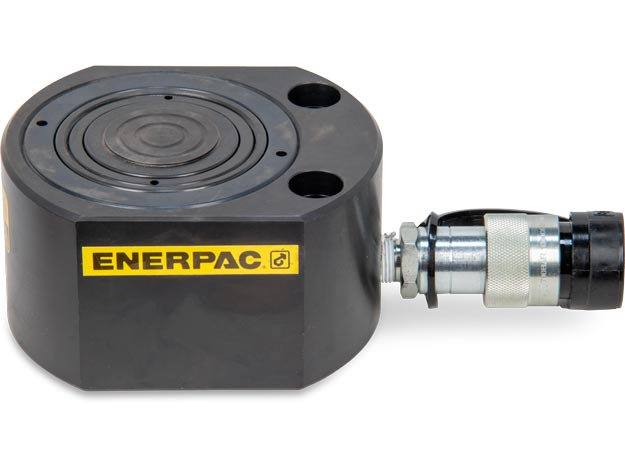

RLT230 - Image 7

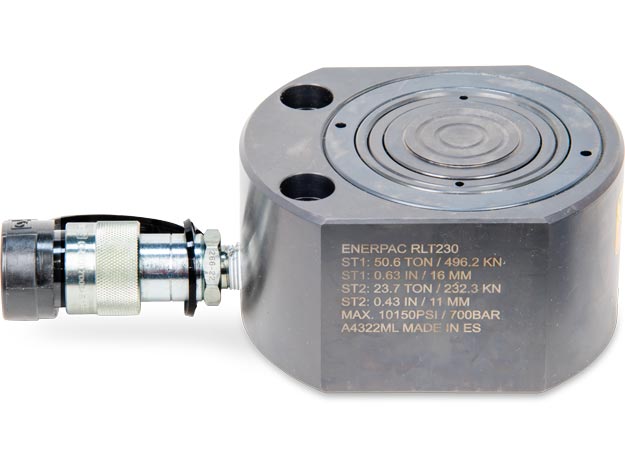

RLT230 - Image 8
RLT230 - Image 9

RLT230

SKU: RLT230 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,150

Maximum Operating Pressure bar : 700

Series : RLT

Stroke mm : 27

Weight Kgs : 7,6

Hydraulic Cylinders Base Mounting Hole Counter Bore Depth mm : 13

Hydraulic Cylinders Base Mounting Hole Counter Bore Diameter mm : 20

Hydraulic Cylinders Base Mounting Hole Diameter V mm : 13

Hydraulic Cylinders Base Mounting Hole Pitch U mm : 67

Hydraulic Cylinders Base to Advance Port H mm : 20

Hydraulic Cylinders Collapsed Height A mm : 75

Hydraulic Cylinders Diameter D2 mm : 114

Hydraulic Cylinders Extended Height B mm : 102

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 232

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Plunger Diameter F mm : 57

Hydraulic Cylinders Plunger To Base L mm : 58

Hydraulic Cylinders Plunger To Mounting Hole M mm : 56

Hydraulic Cylinders Stage 1 Capacity Kn : 496

Hydraulic Cylinders Stage 1 Stroke S1 mm : 16

Hydraulic Cylinders Stage 2 Capacity kn : 232

Hydraulic Cylinders Stage 2 Stroke S2 mm : 11

Hydraulic Cylinders Stage 3 Stroke S3 mm : -

Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127

Hydraulic Cylinders Dimension D1 mm : 140

Hydraulic Cylinders Oil Capacity Advance Cm3 : 150

Hydraulic Cylinders Return Type : Single-Acting, Load Return

Hydraulic Cylinders Stroke Ranges mm : 24 - 47

PLG: default Price Group List Price : 1

Description

  • Collar threads, plunger threads and base mounting holes for easy fixturing
  • Baked enamel finish for increased corrosion resistance
  • Removable hardened saddles protect plunger during lifting and pressing
  • Built-in safety valve prevents accidental over-pressurization
  • Plunger wiper reduces contamination, extending cylinder life
  • CR400 included on all models

Additional information

Weight 7.6 kg
