Maximum Operating Pressure psi : 10,000
Maximum Operating Pressure bar : 700

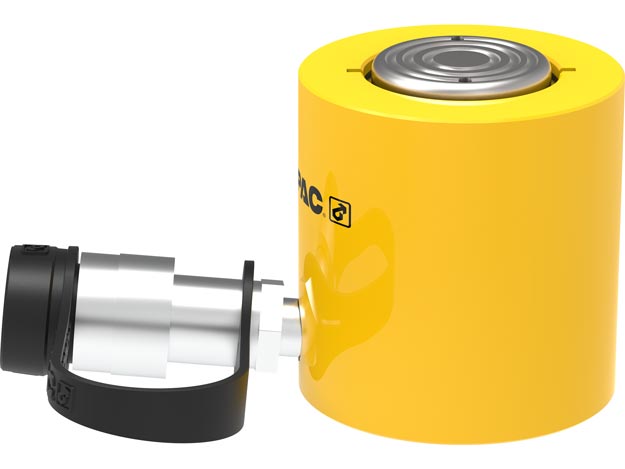

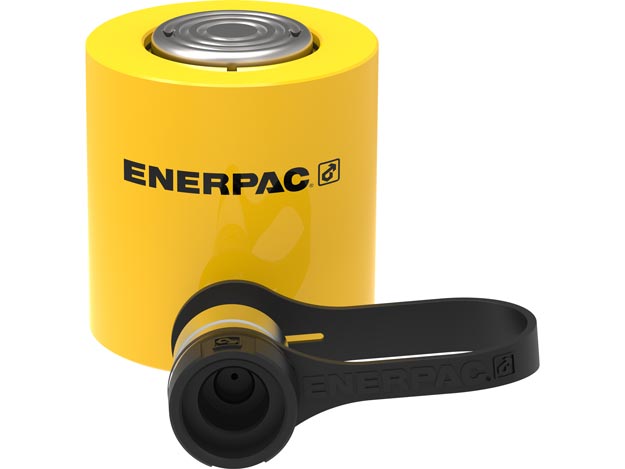

Series : RCS
Stroke mm : 45
Unit Height Shipping Oracle ERP : 6
Unit Length Shipping Oracle ERP : 6
Unit Width Shipping Oracle ERP : 9
Weight Kgs : 5,0
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 40
Hydraulic Cylinders Base to Advance Port H mm : 17
Hydraulic Cylinders Collapsed Height A mm : 98
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 28,7
Hydraulic Cylinders Extended Height B mm : 143
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 201
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 26
Hydraulic Cylinders Outside Diameter D mm : 92
Hydraulic Cylinders Plunger Thread Length P mm : 8
Hydraulic Cylinders Saddle Diameter J1 mm : 50
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 3
Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127
Hydraulic Cylinders Oil Capacity Advance Cm3 : 129
Hydraulic Cylinders Return Type : Single-Acting, Spring Return
Hydraulic Cylinders Saddle Diameter J mm : 50
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 3
Hydraulic Cylinders Stroke Ranges mm : 24 - 47
PLG: default Price Group List Price : 1
