Maximum Operating Pressure psi : 10,000
Maximum Operating Pressure bar : 700

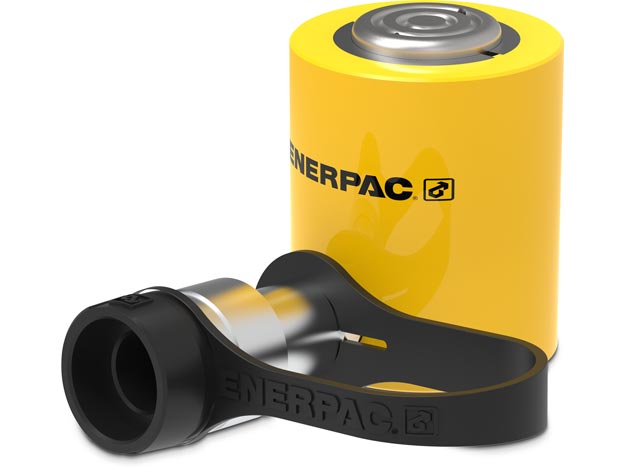

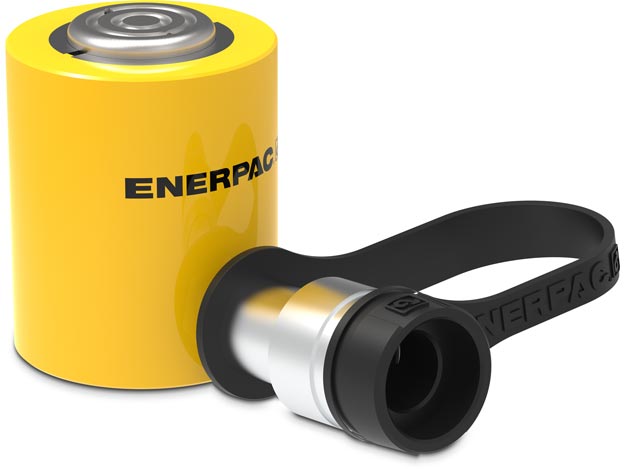

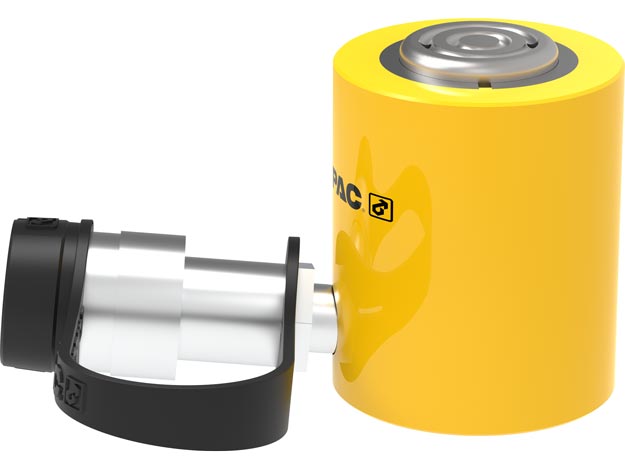

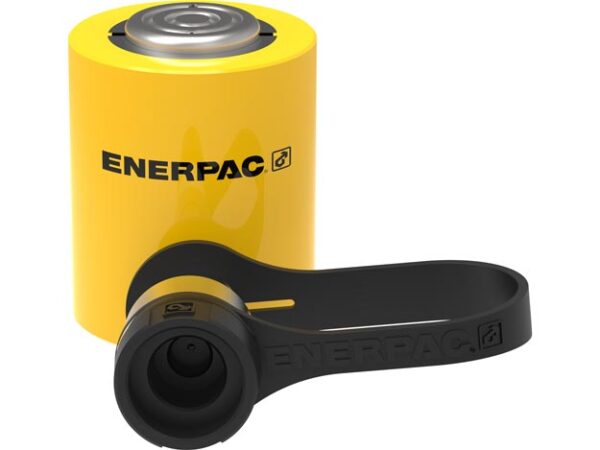

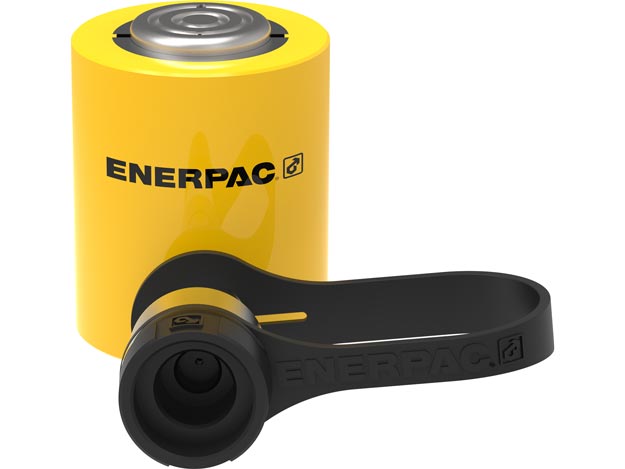

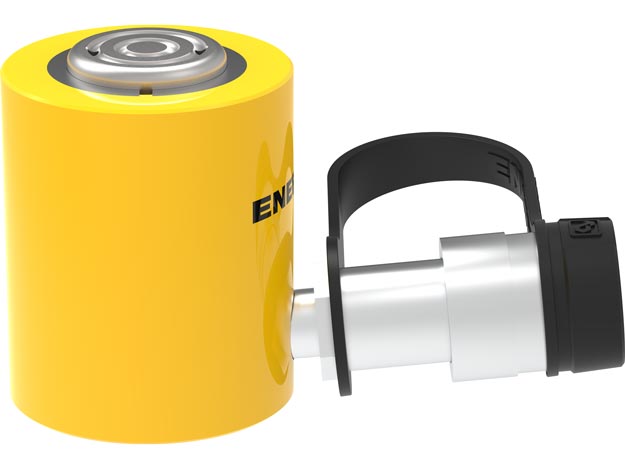

Series : RCS
Stroke mm : 38
Unit Height Shipping Oracle ERP : 4
Unit Length Shipping Oracle ERP : 5
Unit Width Shipping Oracle ERP : 6
Weight Kgs : 2,7
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 26
Hydraulic Cylinders Base to Advance Port H mm : 17
Hydraulic Cylinders Collapsed Height A mm : 88
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 14,5
Hydraulic Cylinders Extended Height B mm : 126
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 101
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 20
Hydraulic Cylinders Outside Diameter D mm : 69
Hydraulic Cylinders Plunger Thread Length P mm : 8
Hydraulic Cylinders Saddle Diameter J1 mm : 35
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 5
Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127
Hydraulic Cylinders Oil Capacity Advance Cm3 : 55
Hydraulic Cylinders Return Type : Single-Acting, Spring Return
Hydraulic Cylinders Saddle Diameter J mm : 35
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 5
Hydraulic Cylinders Stroke Ranges mm : 24 - 47
