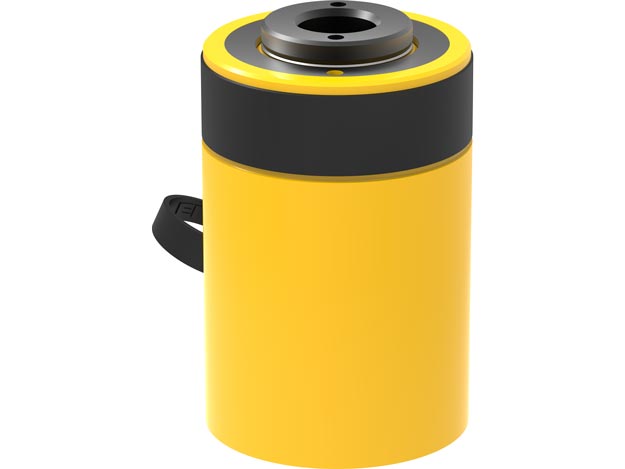

RCH302

RCH302

SKU: RCH302 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RCH

Stroke mm : 64

Unit Height Shipping Oracle ERP : 6

Unit Length Shipping Oracle ERP : 6

Unit Width Shipping Oracle ERP : 9

Weight Kgs : 10,9

Hydraulic Cylinders Base Mounting Holes Thread V : 3/8"-16 unc

Hydraulic Cylinders Base to Advance Port H mm : 21

Hydraulic Cylinders Collapsed Height A mm : 178

Hydraulic Cylinders Collar Thread Length X mm : 42

Hydraulic Cylinders Collar Thread W mm : 4 1/2" - 12

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 46,6

Hydraulic Cylinders Extended Height B mm : 242

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 326

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 114

Hydraulic Cylinders Plunger Thread Length P mm : 22

Hydraulic Cylinders Saddle Diameter J1 mm : 63

Hydraulic Cylinders Collapsed Height A Ranges Mm : 128 - 254

Hydraulic Cylinders Oil Capacity Advance Cm3 : 298

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 63

Hydraulic Cylinders Stroke Ranges mm : 48 - 94

PLG: default Price Group List Price : 1

Description

  • Full range of interchangeable hexagon cassettes provides maximum versatility.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 10.78 kg
