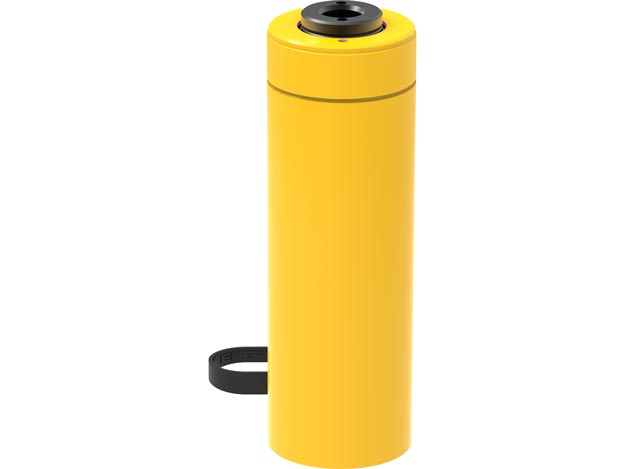

RCH206

RCH206

SKU: RCH206 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RCH

Stroke mm : 155

Unit Height Shipping Oracle ERP : 8

Unit Length Shipping Oracle ERP : 21

Unit Width Shipping Oracle ERP : 6

Weight Kgs : 14,1

Hydraulic Cylinders Base Mounting Holes Thread V : 3/8"-16 unc

Hydraulic Cylinders Base to Advance Port H mm : 25

Hydraulic Cylinders Collapsed Height A mm : 306

Hydraulic Cylinders Collar Thread Length X mm : 38

Hydraulic Cylinders Collar Thread W mm : 2 7/8" - 12

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 30,7

Hydraulic Cylinders Extended Height B mm : 461

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 215

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 98

Hydraulic Cylinders Plunger Thread Length P mm : 19

Hydraulic Cylinders Saddle Diameter J1 mm : 54

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders Oil Capacity Advance Cm3 : 476

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 54

Hydraulic Cylinders Stroke Ranges mm : 120 - 174

PLG: default Price Group List Price : 1

Description

  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 14.111 kg
