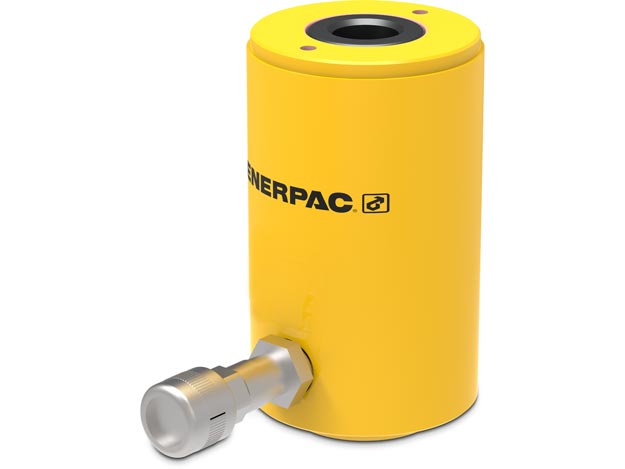

RCH121

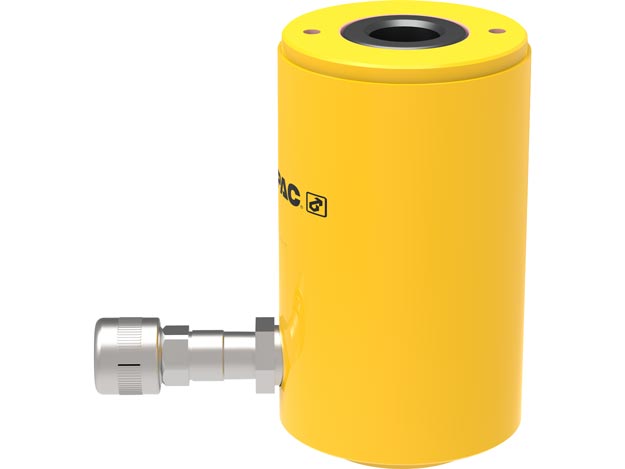

RCH121 - Image 2

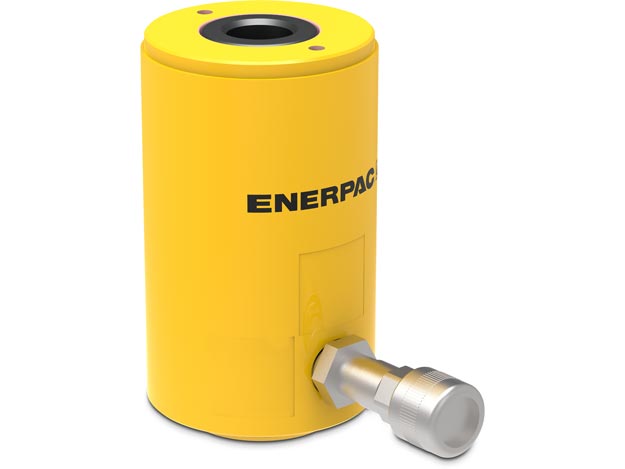

RCH121 - Image 3

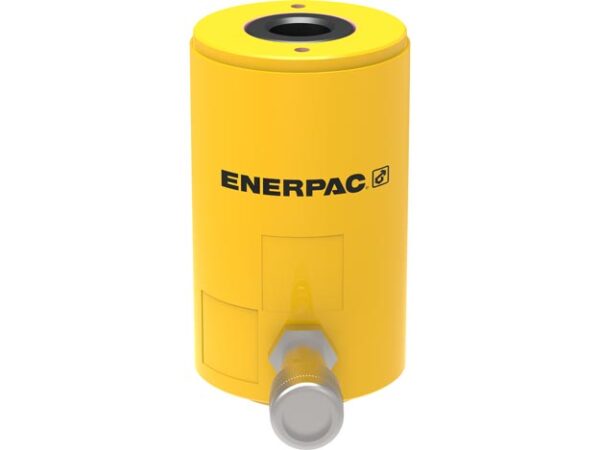

RCH121 - Image 4

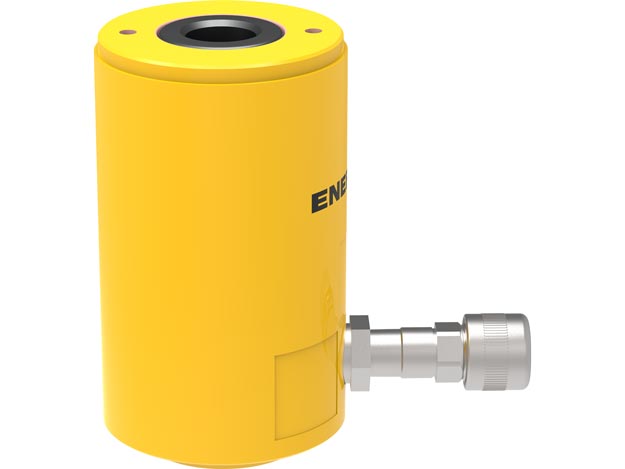

RCH121 - Image 5

RCH121

SKU: RCH121 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RCH

Stroke mm : 42

Unit Height Shipping Oracle ERP : 4

Unit Length Shipping Oracle ERP : 5

Unit Width Shipping Oracle ERP : 6

Weight Kgs : 2,8

Hydraulic Cylinders Base Mounting Holes Thread V : -

Hydraulic Cylinders Base to Advance Port H mm : 25

Hydraulic Cylinders Collapsed Height A mm : 120

Hydraulic Cylinders Collar Thread Length X mm : 30

Hydraulic Cylinders Collar Thread W mm : 2 3/4" - 16

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 17,9

Hydraulic Cylinders Extended Height B mm : 162

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 125

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 69

Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127

Hydraulic Cylinders Oil Capacity Advance Cm3 : 75

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 24 - 47

PLG: default Price Group List Price : 1

Description

  • Full range of interchangeable hexagon cassettes provides maximum versatility.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 3.042 kg
