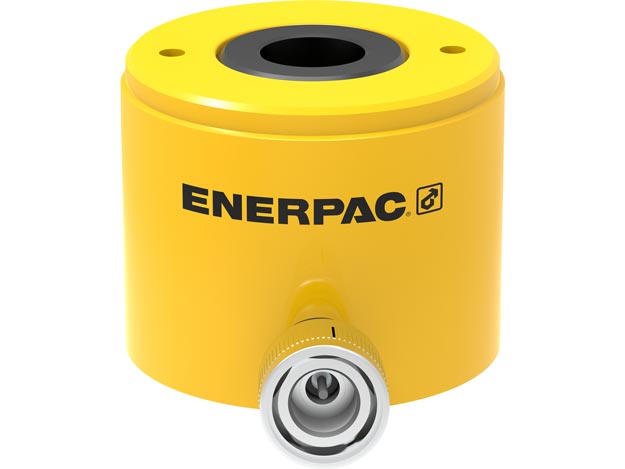

RCH120

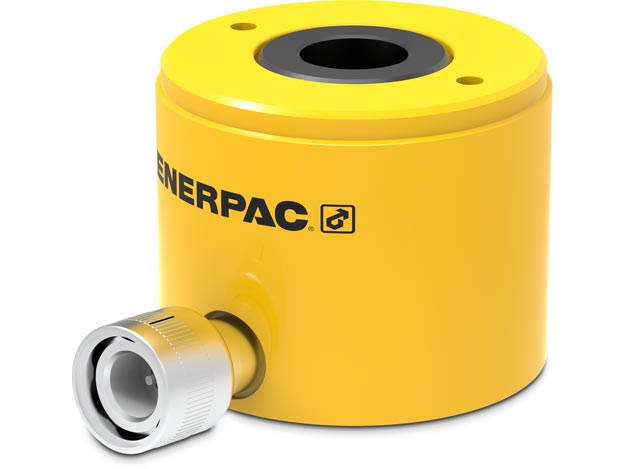

RCH120 - Image 2

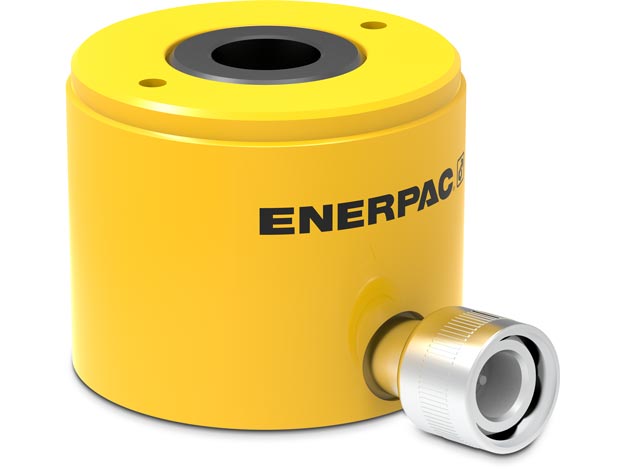

RCH120 - Image 3

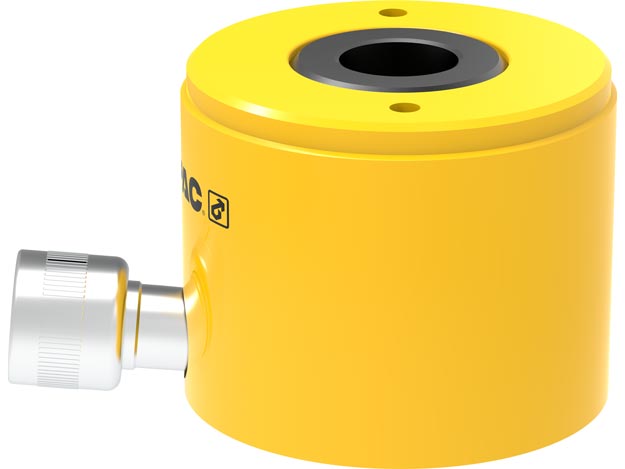

RCH120 - Image 4

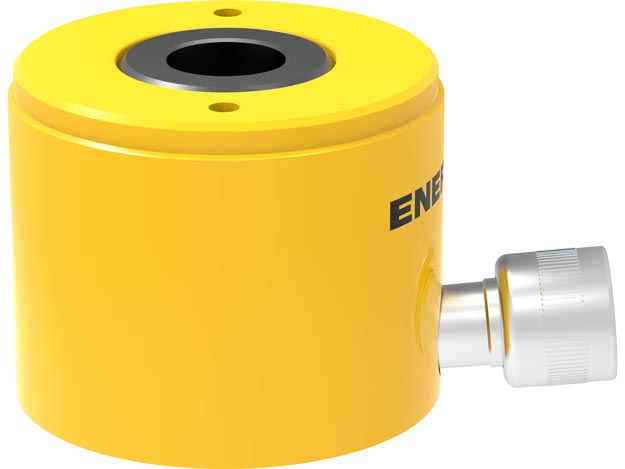

RCH120 - Image 5

RCH120

SKU: RCH120 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RCH

Stroke mm : 8

Unit Height Shipping Oracle ERP : 4

Unit Length Shipping Oracle ERP : 4

Unit Width Shipping Oracle ERP : 4

Weight Kgs : 1,5

Hydraulic Cylinders Base Mounting Holes Thread V : 5/16"-18 unc

Hydraulic Cylinders Base to Advance Port H mm : 9

Hydraulic Cylinders Collapsed Height A mm : 55

Hydraulic Cylinders Collar Thread Length X mm : 30

Hydraulic Cylinders Collar Thread W mm : 2 3/4" - 16

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 17,9

Hydraulic Cylinders Extended Height B mm : 63

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 125

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 69

Hydraulic Cylinders Plunger Thread Length P mm : 16

Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127

Hydraulic Cylinders Oil Capacity Advance Cm3 : 14

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 0 - 23

PLG: default Price Group List Price : 1

Description

  • Full range of interchangeable hexagon cassettes provides maximum versatility.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 1.692 kg
