Maximum Operating Pressure psi : 10,000
Maximum Operating Pressure bar : 700

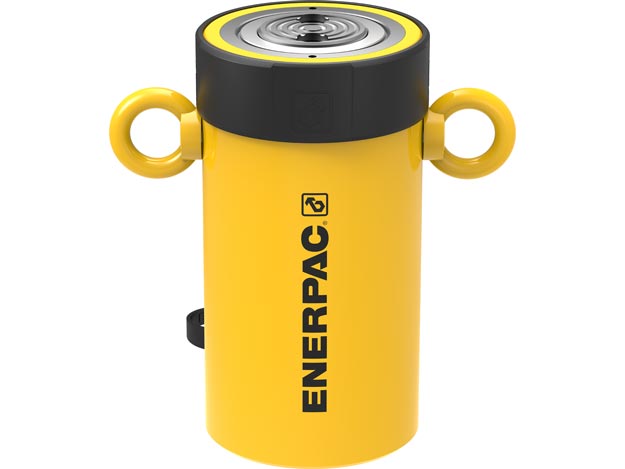

Series : RC
Stroke mm : 156
Unit Height Shipping Oracle ERP : 12
Unit Length Shipping Oracle ERP : 9
Unit Width Shipping Oracle ERP : 8
Weight Kgs : 29,5
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 114
Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 16
Hydraulic Cylinders Base Mounting Holes Thread V : 5/8"-11 UNC
Hydraulic Cylinders Base to Advance Port H mm : 30
Hydraulic Cylinders Collapsed Height A mm : 286
Hydraulic Cylinders Collar Thread Length X mm : 44
Hydraulic Cylinders Collar Thread W mm : 5 3/4" - 12 un
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 102,6
Hydraulic Cylinders Extended Height B mm : 442
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 718
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 15
Hydraulic Cylinders Outside Diameter D mm : 146
Hydraulic Cylinders Saddle Diameter J1 mm : 71
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 2
Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381
Hydraulic Cylinders Oil Capacity Advance Cm3 : 1601
Hydraulic Cylinders Return Type : Single-Acting, Spring Return
Hydraulic Cylinders Saddle Diameter J mm : 71
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 2
Hydraulic Cylinders Stroke Ranges mm : 120 - 174
PLG: default Price Group List Price : 1
