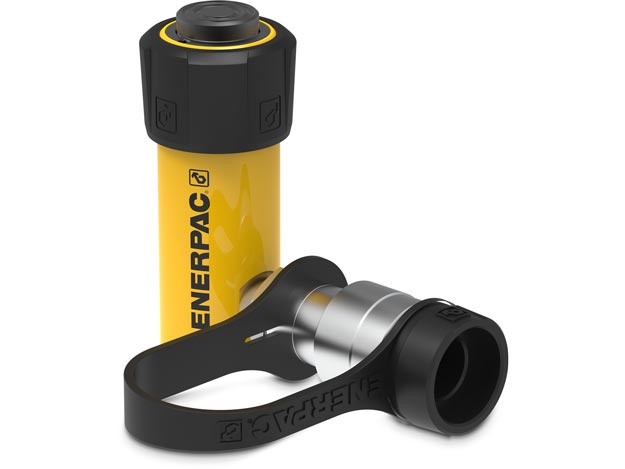

RC51

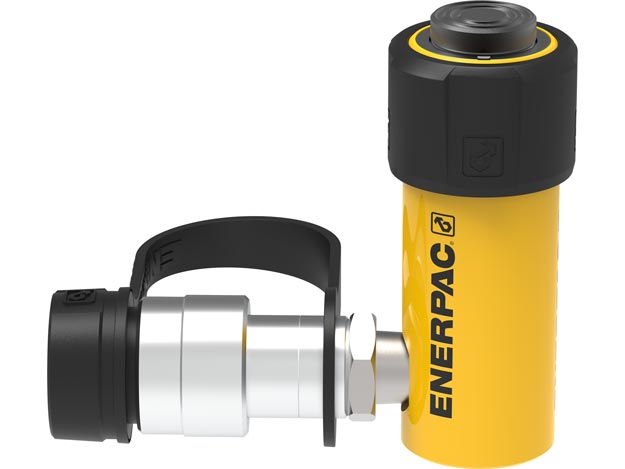

RC51 - Image 2

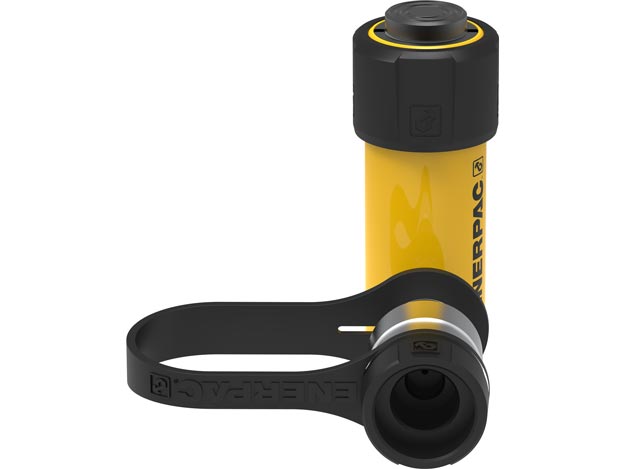

RC51 - Image 3

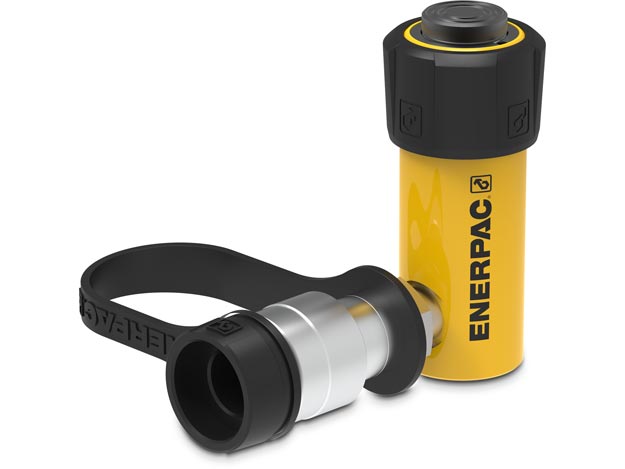

RC51 - Image 4

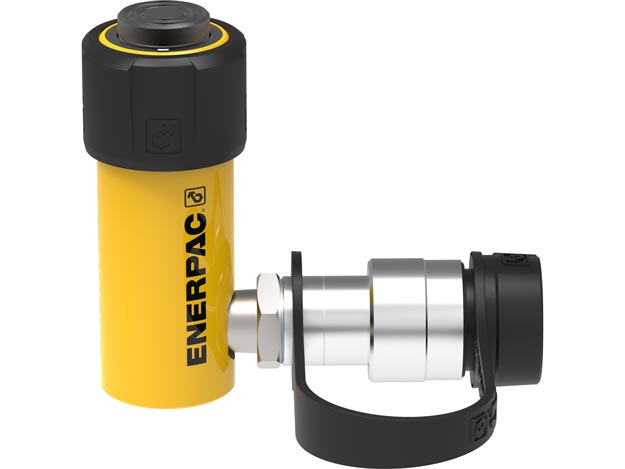

RC51 - Image 5

RC51

SKU: RC51 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RC

Stroke mm : 25

Unit Height Shipping Oracle ERP : 4

Unit Length Shipping Oracle ERP : 5

Unit Width Shipping Oracle ERP : 5

Weight Kgs : 1,0

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 25

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 14

Hydraulic Cylinders Base Mounting Holes Thread V : 1/4"- 20 un

Hydraulic Cylinders Base to Advance Port H mm : 19

Hydraulic Cylinders Collapsed Height A mm : 110

Hydraulic Cylinders Collar Thread Length X mm : 28

Hydraulic Cylinders Collar Thread W mm : 1 1/2" - 16 un

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 6,4

Hydraulic Cylinders Extended Height B mm : 135

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 45

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 38

Hydraulic Cylinders Plunger Thread Length P mm : 14

Hydraulic Cylinders Saddle Diameter J1 mm : 25

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 6

Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127

Hydraulic Cylinders Oil Capacity Advance Cm3 : 16

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 25

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 6

Hydraulic Cylinders Stroke Ranges mm : 24 - 47

PLG: default Price Group List Price : 1

Description

  • Full range of interchangeable hexagon cassettes provides maximum versatility.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 1.351 kg
