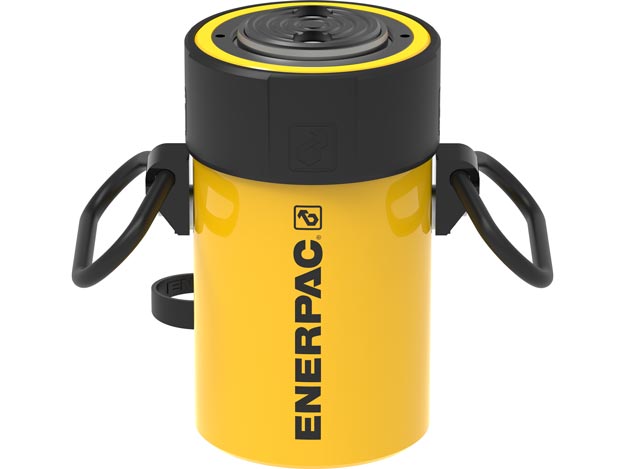

RC504

RC504

SKU: RC504 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RC

Stroke mm : 101

Unit Height Shipping Oracle ERP : 12

Unit Length Shipping Oracle ERP : 9

Unit Width Shipping Oracle ERP : 7

Weight Kgs : 19,1

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 95

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 19

Hydraulic Cylinders Base Mounting Holes Thread V : 1/2"- 13 un

Hydraulic Cylinders Base to Advance Port H mm : 33

Hydraulic Cylinders Collapsed Height A mm : 227

Hydraulic Cylinders Collar Thread Length X mm : 55

Hydraulic Cylinders Collar Thread W mm : 5" - 12 un

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 71,3

Hydraulic Cylinders Extended Height B mm : 328

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 498

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 15

Hydraulic Cylinders Outside Diameter D mm : 127

Hydraulic Cylinders Saddle Diameter J1 mm : 71

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 2

Hydraulic Cylinders Collapsed Height A Ranges Mm : 128 - 254

Hydraulic Cylinders Oil Capacity Advance Cm3 : 719

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 71

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 2

Hydraulic Cylinders Stroke Ranges mm : 95 - 119

PLG: default Price Group List Price : 1

Description

  • Full range of interchangeable hexagon cassettes provides maximum versatility.
  • Constant torque output provides accuracy of +/- 3% across full stroke.

Additional information

Weight 19.057 kg
