Maximum Operating Pressure psi : 10,000
Maximum Operating Pressure bar : 700

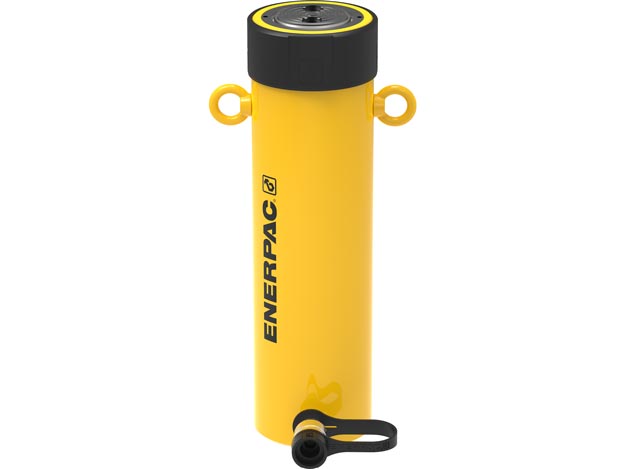

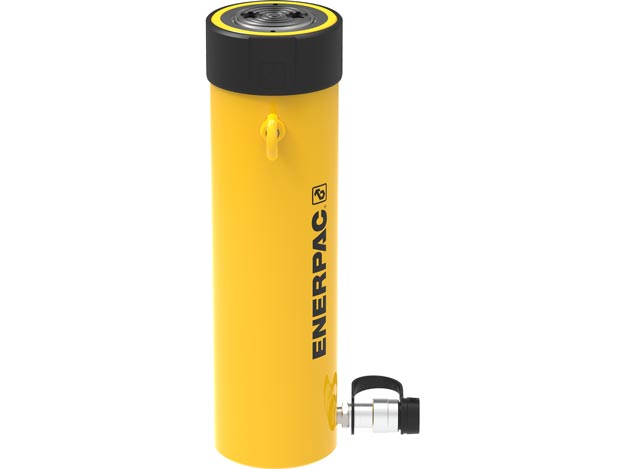

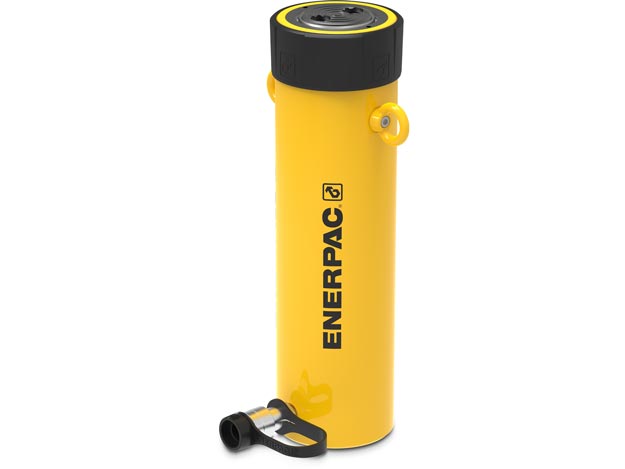

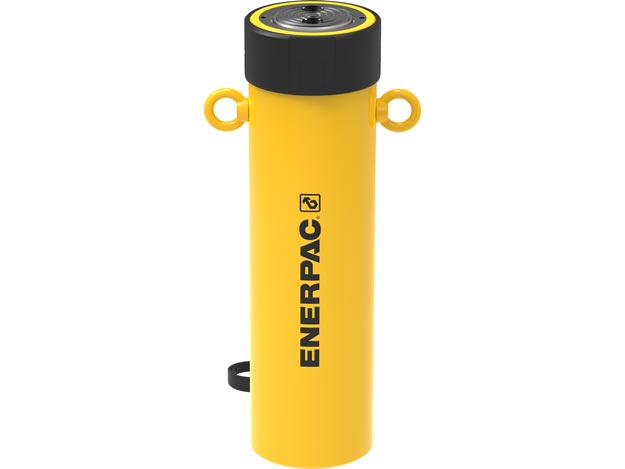

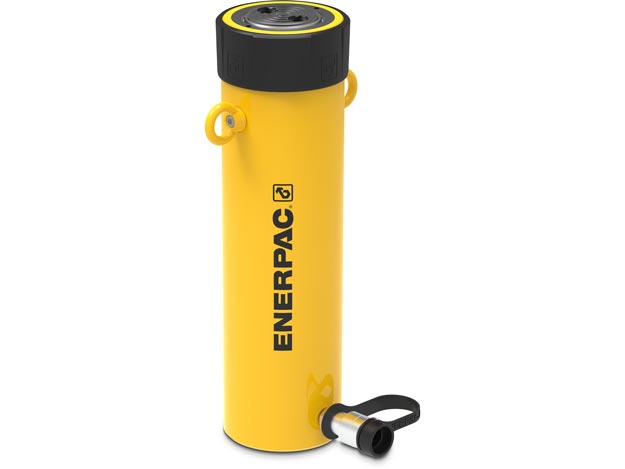

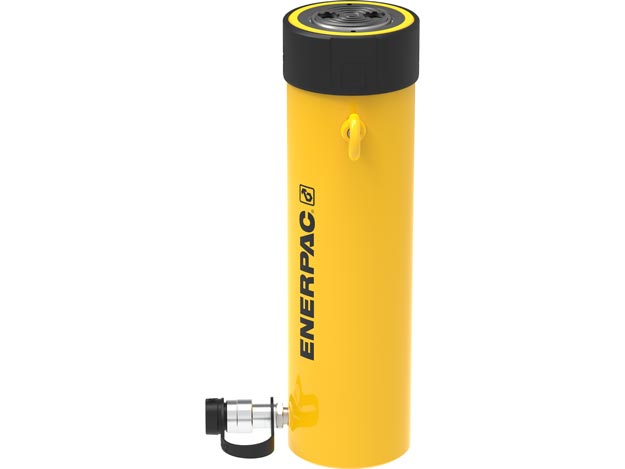

Series : RC
Stroke mm : 337
Unit Height Shipping Oracle ERP : 6
Unit Length Shipping Oracle ERP : 21
Unit Width Shipping Oracle ERP : 10
Weight Kgs : 37,6
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 95
Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 19
Hydraulic Cylinders Base Mounting Holes Thread V : 1/2"- 13 un
Hydraulic Cylinders Base to Advance Port H mm : 35
Hydraulic Cylinders Collapsed Height A mm : 460
Hydraulic Cylinders Collar Thread Length X mm : 55
Hydraulic Cylinders Collar Thread W mm : 5" - 12 un
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 71,3
Hydraulic Cylinders Extended Height B mm : 797
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 498
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 15
Hydraulic Cylinders Outside Diameter D mm : 127
Hydraulic Cylinders Saddle Diameter J1 mm : 71
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 2
Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508
Hydraulic Cylinders Oil Capacity Advance Cm3 : 2399
Hydraulic Cylinders Return Type : Single-Acting, Spring Return
Hydraulic Cylinders Saddle Diameter J mm : 71
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 2
Hydraulic Cylinders Stroke Ranges mm : 290 - 379
PLG: default Price Group List Price : 1
