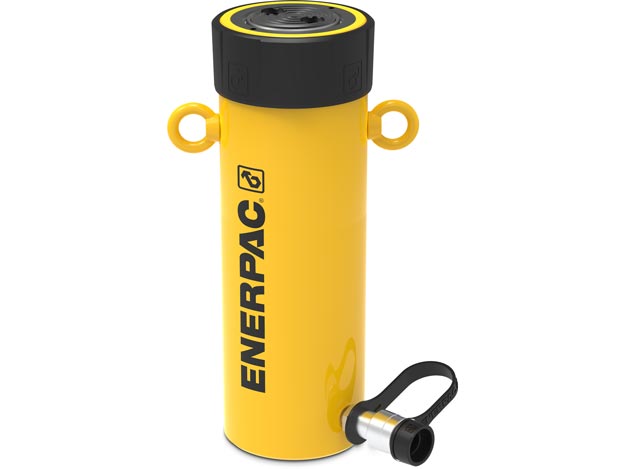

RC5010

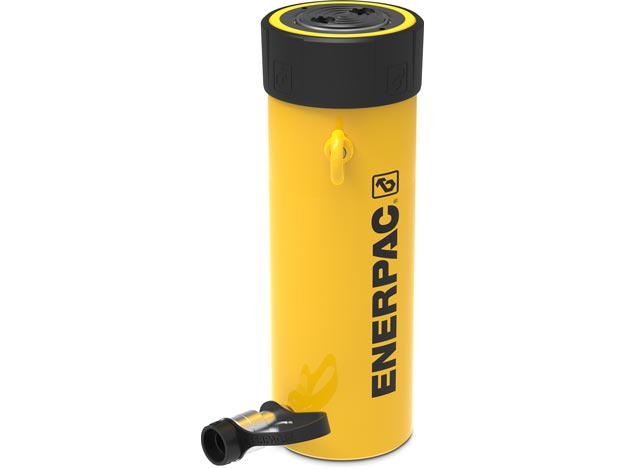

RC5010 - Image 2

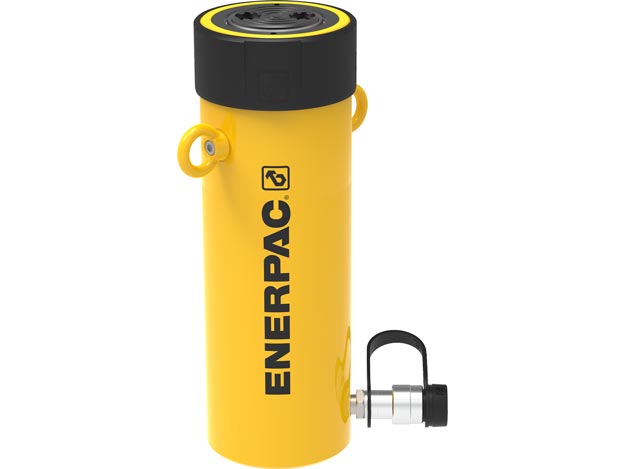

RC5010 - Image 3

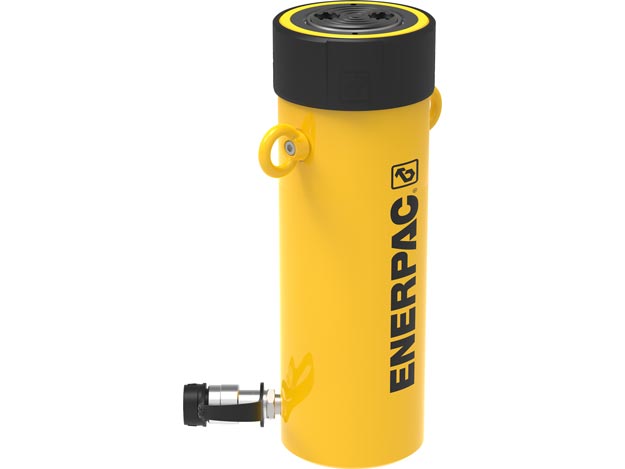

RC5010 - Image 4

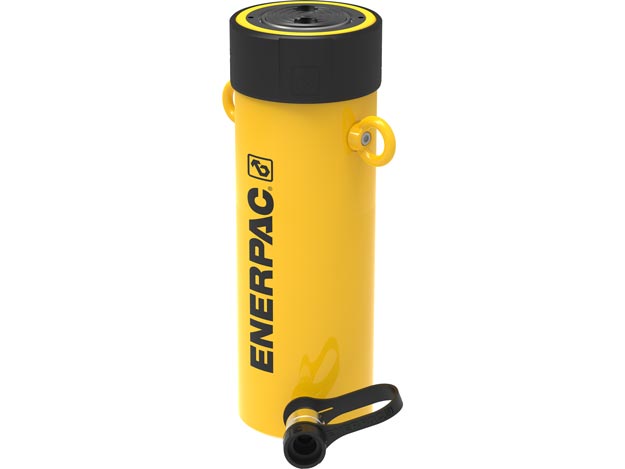

RC5010 - Image 5

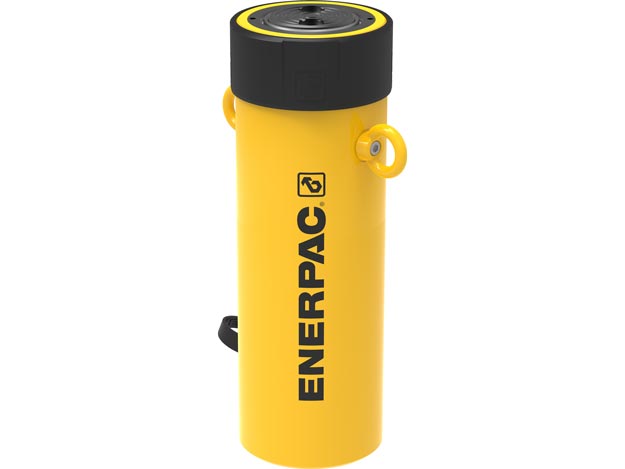

RC5010 - Image 6

RC5010

SKU: RC5010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RC

Stroke mm : 260

Weight Kgs : 31,8

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 95

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 19

Hydraulic Cylinders Base Mounting Holes Thread V : 1/2"- 13 unc

Hydraulic Cylinders Base to Advance Port H mm : 35

Hydraulic Cylinders Collapsed Height A mm : 384

Hydraulic Cylinders Collar Thread Length X mm : 55

Hydraulic Cylinders Collar Thread W mm : 5" - 12 un

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 71,3

Hydraulic Cylinders Extended Height B mm : 644

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 498

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 15

Hydraulic Cylinders Outside Diameter D mm : 127

Hydraulic Cylinders Saddle Diameter J1 mm : 71

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 2

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 1855

Hydraulic Cylinders Saddle Diameter J mm : 71

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 2

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1
