RC50
RC50 - Image 2

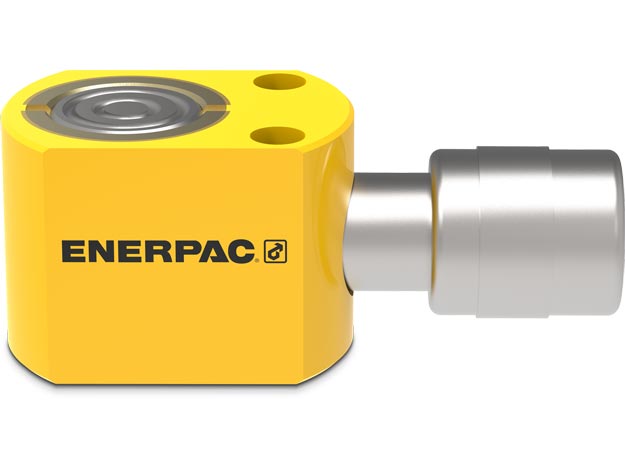

RC50 - Image 3

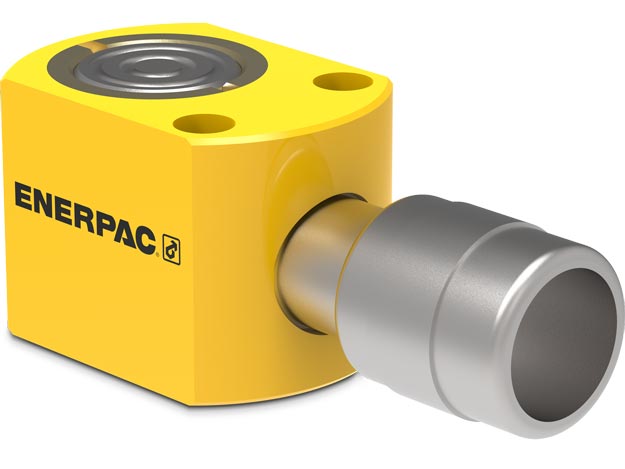

RC50 - Image 4

RC50

SKU: RC50 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RC

Stroke mm : 16

Unit Height Shipping Oracle ERP : 4

Unit Length Shipping Oracle ERP : 5

Unit Width Shipping Oracle ERP : 5

Weight Kgs : 1,0

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 29

Hydraulic Cylinders Base Mounting Holes Thread V : 5,6 mm

Hydraulic Cylinders Base to Advance Port H mm : 19

Hydraulic Cylinders Collapsed Height A mm : 41

Hydraulic Cylinders Collar Thread W mm : -

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 6,4

Hydraulic Cylinders Dimension M mm : 25

Hydraulic Cylinders Extended Height B mm : 57

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 45

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 58

Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127

Hydraulic Cylinders Dimension D1 mm : 41

Hydraulic Cylinders Dimension L mm : 20

Hydraulic Cylinders Features : Mounting Options

Hydraulic Cylinders Oil Capacity Advance Cm3 : 10

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 0 - 23

PLG: default Price Group List Price : 1

Additional information

Weight 1.168 kg

Reviews

There are no reviews yet.

Be the first to review “RC50”

Your email address will not be published. Required fields are marked *
