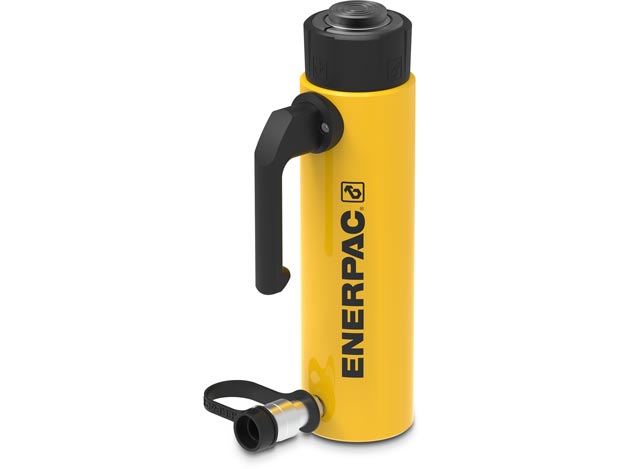

RC308

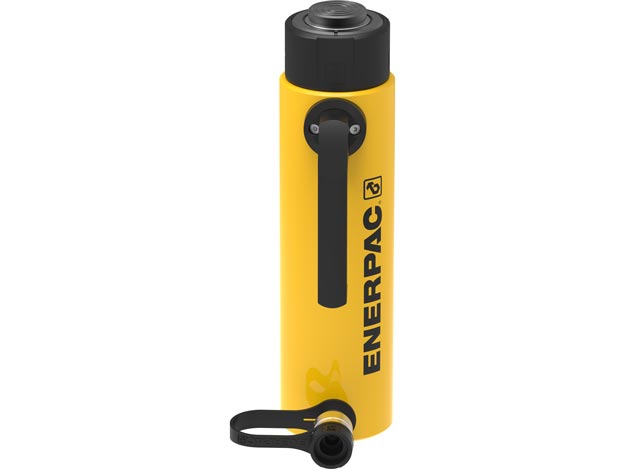

RC308 - Image 2

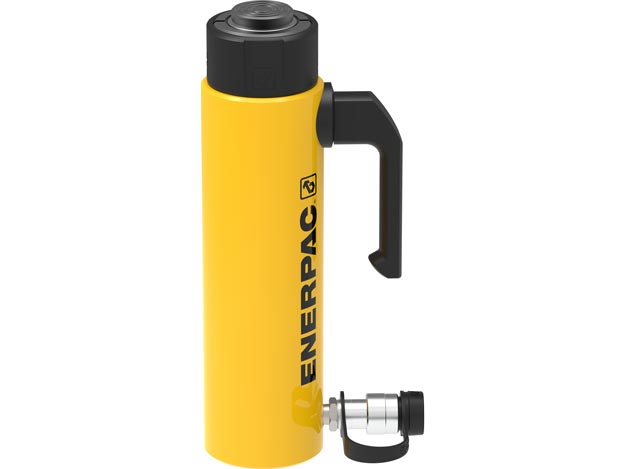

RC308 - Image 3

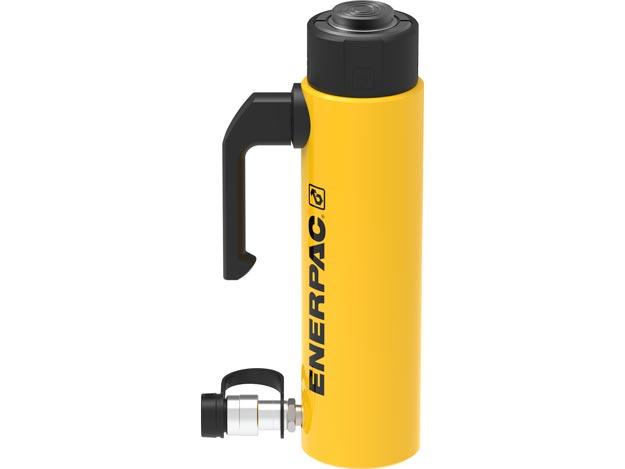

RC308 - Image 4

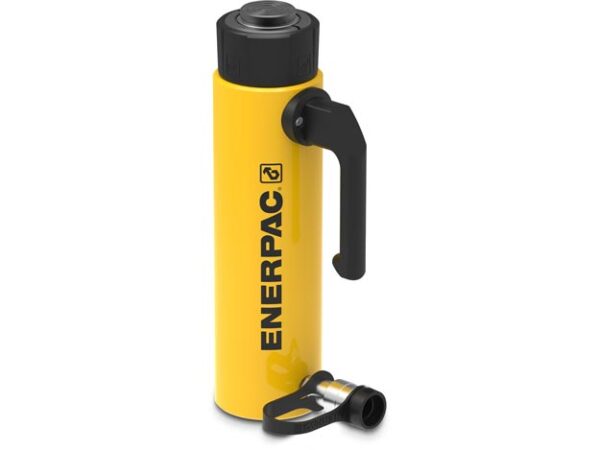

RC308 - Image 5

RC308

SKU: RC308 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RC

Stroke mm : 209

Unit Height Shipping Oracle ERP : 8

Unit Length Shipping Oracle ERP : 6

Unit Width Shipping Oracle ERP : 21

Weight Kgs : 18,1

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 59

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 16

Hydraulic Cylinders Base Mounting Holes Thread V : 1/2"-13 UNC

Hydraulic Cylinders Collapsed Height A mm : 387

Hydraulic Cylinders Collar Thread Length X mm : 49

Hydraulic Cylinders Collar Thread W mm : 3 5/16" - 12 un

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 42,9

Hydraulic Cylinders Extended Height B mm : 596

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 295

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 15

Hydraulic Cylinders Outside Diameter D mm : 102

Hydraulic Cylinders Plunger Thread Length P mm : 25

Hydraulic Cylinders Saddle Diameter J1 mm : 50

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 10

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 880

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 51

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 10

Hydraulic Cylinders Stroke Ranges mm : 175 - 239

PLG: default Price Group List Price : 1

Additional information

Weight 19.11 kg
