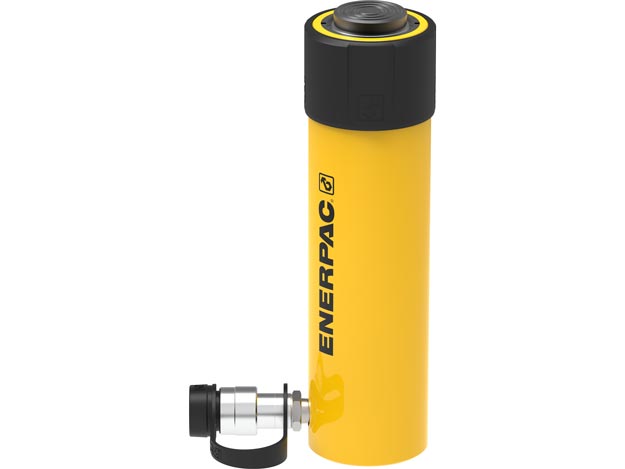

RC258

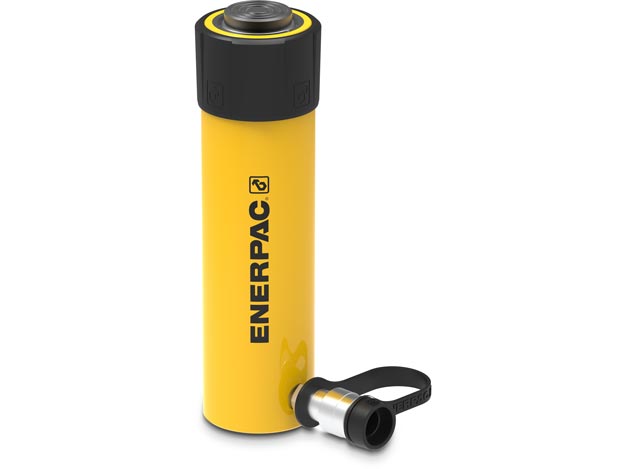

RC258 - Image 2

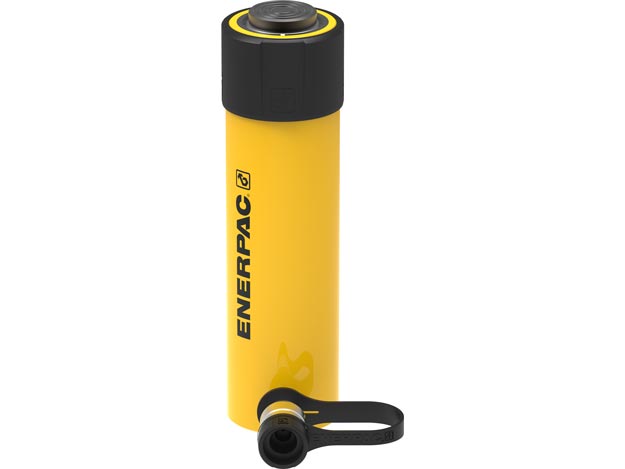

RC258 - Image 3

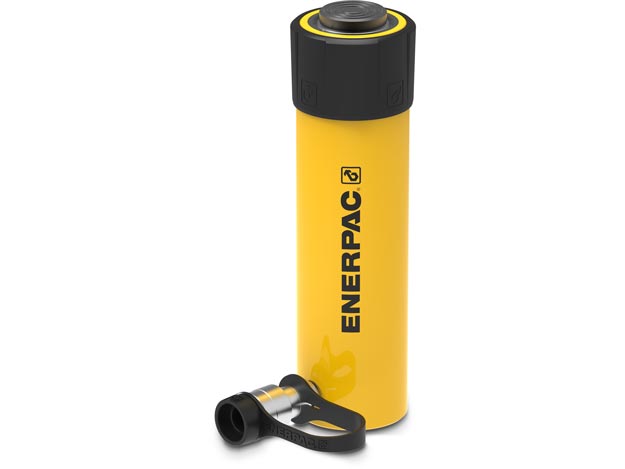

RC258 - Image 4

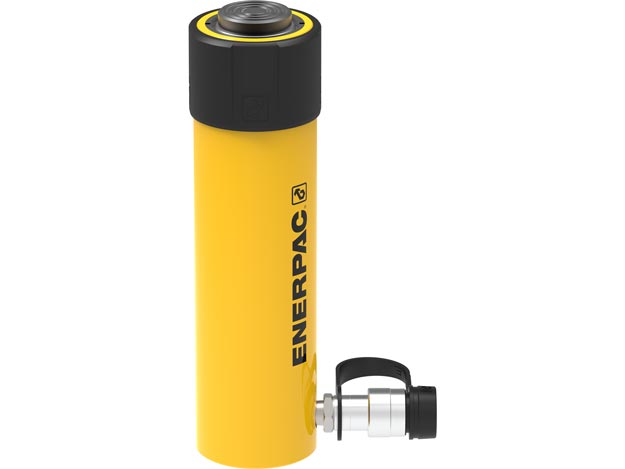

RC258 - Image 5

RC258

SKU: RC258 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RC

Stroke mm : 210

Unit Height Shipping Oracle ERP : 9

Unit Length Shipping Oracle ERP : 6

Unit Width Shipping Oracle ERP : 21

Weight Kgs : 12,2

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 59

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 19

Hydraulic Cylinders Base Mounting Holes Thread V : 1/2"- 13 un

Hydraulic Cylinders Base to Advance Port H mm : 25

Hydraulic Cylinders Collapsed Height A mm : 324

Hydraulic Cylinders Collar Thread Length X mm : 49

Hydraulic Cylinders Collar Thread W mm : 3 5/16" - 12 un

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 33,3

Hydraulic Cylinders Extended Height B mm : 534

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 232

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 15

Hydraulic Cylinders Outside Diameter D mm : 86

Hydraulic Cylinders Plunger Thread Length P mm : 25

Hydraulic Cylinders Saddle Diameter J1 mm : 50

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 10

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders Oil Capacity Advance Cm3 : 697

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 51

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 10

Hydraulic Cylinders Stroke Ranges mm : 175 - 239

PLG: default Price Group List Price : 1

Additional information

Weight 12.785 kg
