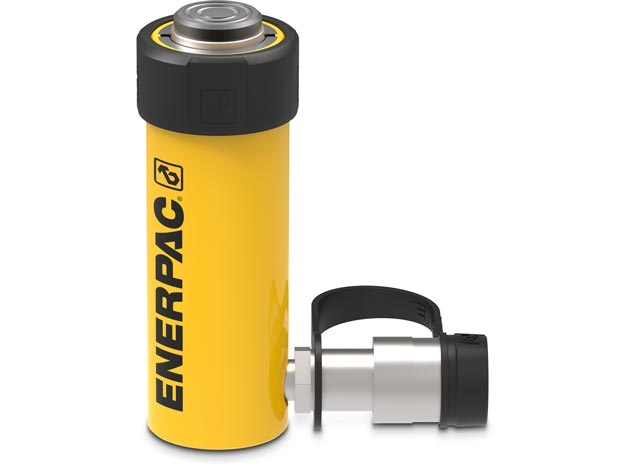

RC104

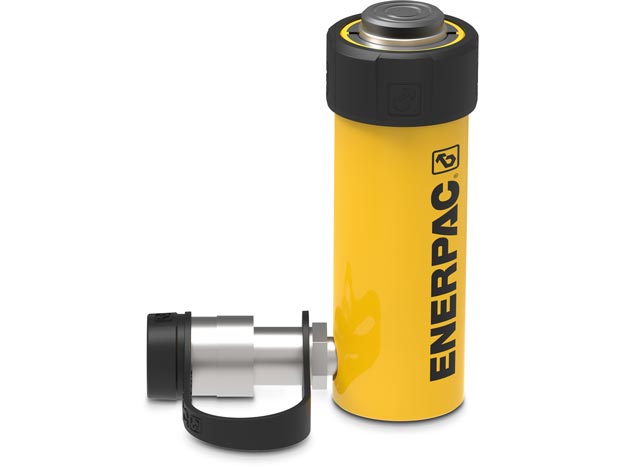

RC104 - Image 2

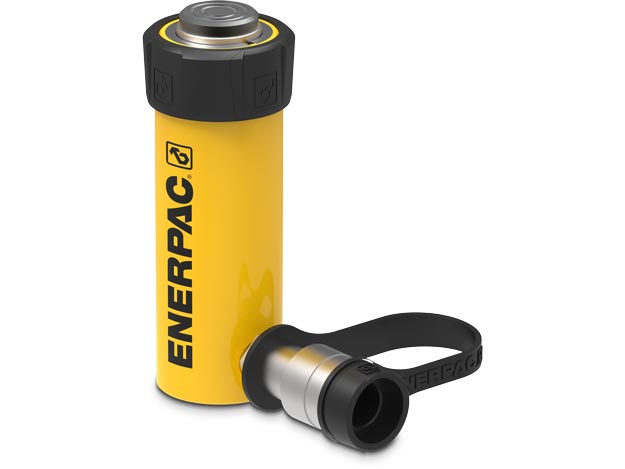

RC104 - Image 3

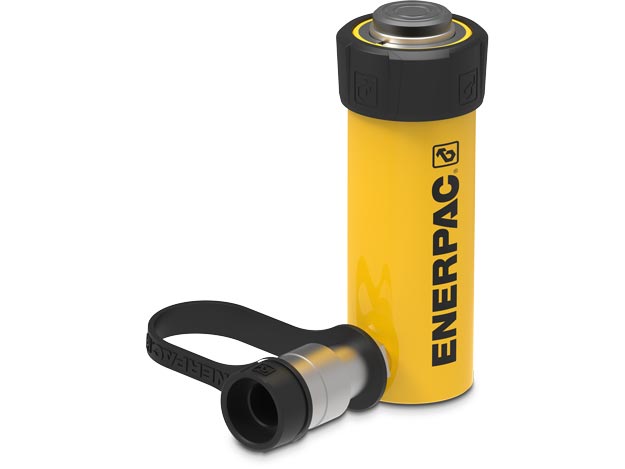

RC104 - Image 4

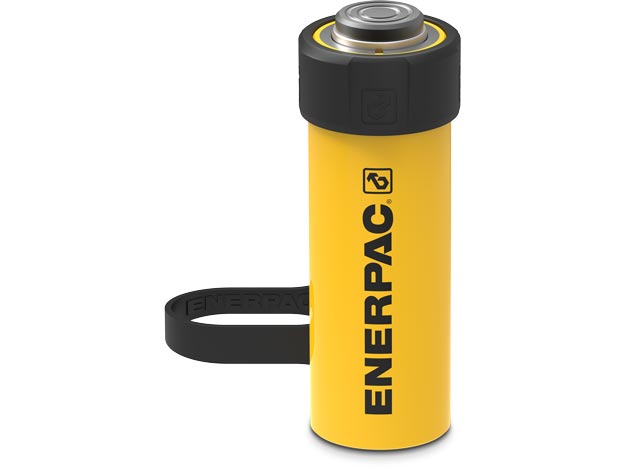

RC104 - Image 5

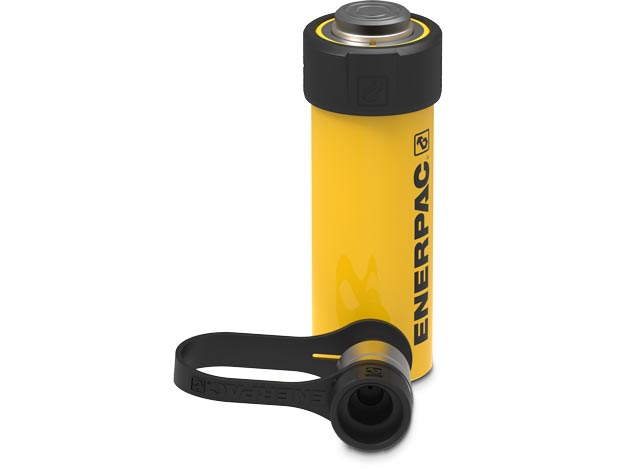

RC104 - Image 6

RC104

SKU: RC104 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RC

Stroke mm : 105

Unit Height Shipping Oracle ERP : 3

Unit Length Shipping Oracle ERP : 6

Unit Width Shipping Oracle ERP : 9

Weight Kgs : 3,3

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 40

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 12

Hydraulic Cylinders Base Mounting Holes Thread V : 5/16"- 18 un

Hydraulic Cylinders Base to Advance Port H mm : 19

Hydraulic Cylinders Collapsed Height A mm : 171

Hydraulic Cylinders Collar Thread Length X mm : 27

Hydraulic Cylinders Collar Thread W mm : 2 1/4" - 14 un

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 14,4

Hydraulic Cylinders Extended Height B mm : 276

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 101

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 14

Hydraulic Cylinders Outside Diameter D mm : 57

Hydraulic Cylinders Plunger Thread Length P mm : 19

Hydraulic Cylinders Saddle Diameter J1 mm : 35

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 6

Hydraulic Cylinders Collapsed Height A Ranges Mm : 128 - 254

Hydraulic Cylinders Oil Capacity Advance Cm3 : 152

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 35

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 6

Hydraulic Cylinders Stroke Ranges mm : 95 - 119

PLG: default Price Group List Price : 1

Description

  • Hollow plunger design allows for both pull and push forces
  • Single-acting spring return
  • Nickel-plated, floating center tube on models over 218 kNs increases product life
  • Baked enamel finish for increased corrosion resistance
  • Collar threads for easy fixturing
  • Includes AR630 coupler and has 1/4 NPTF port

Additional information

Weight 3.503 kg
