Maximum Operating Pressure psi : 10,000
Maximum Operating Pressure bar : 700

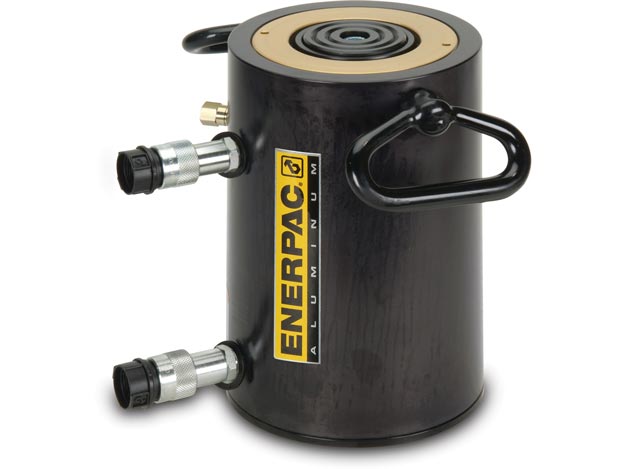

Series : RAR
Stroke mm : 250
Unit Height Shipping Oracle ERP : 12
Unit Length Shipping Oracle ERP : 27
Unit Width Shipping Oracle ERP : 14
Weight Kgs : 93.9
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 200
Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 12
Hydraulic Cylinders Base Mounting Holes Thread V : M6
Hydraulic Cylinders Base to Advance Port H mm : 38
Hydraulic Cylinders Collapsed Height A mm : 448
Hydraulic Cylinders Cylinder Bore Diameter E mm : 170
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 227,0
Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 132,0
Hydraulic Cylinders Extended Height B mm : 698
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 1589
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 19
Hydraulic Cylinders Outside Diameter D mm : 230
Hydraulic Cylinders Plunger Diameter F mm : 110
Hydraulic Cylinders Saddle Diameter J1 mm : 97
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 31
Hydraulic Cylinders Top To Retract Port I mm : 75
Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508
Hydraulic Cylinders Oil Capacity Advance Cm3 : 5,675
Hydraulic Cylinders Oil Capacity Retract Cm3 : 3,300
Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return
Hydraulic Cylinders Saddle Diameter J mm : 94
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 3
Hydraulic Cylinders Stroke Ranges mm : 240 - 289
PLG: default Price Group List Price : 1
