Maximum Operating Pressure psi : 10,000
Maximum Operating Pressure bar : 700

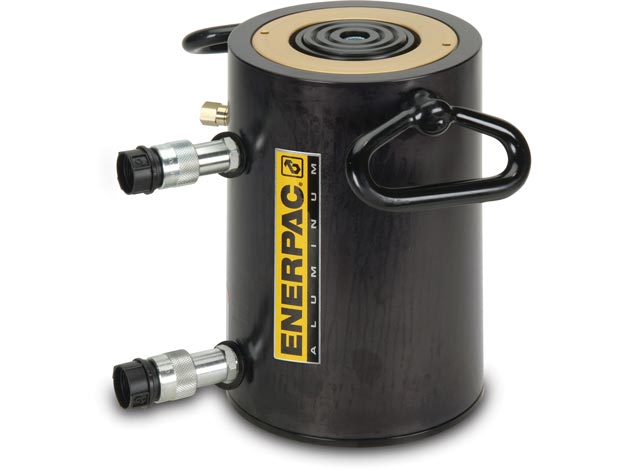

Series : RAR
Stroke mm : 150
Unit Height Shipping Oracle ERP : 15
Unit Length Shipping Oracle ERP : 18
Unit Width Shipping Oracle ERP : 10
Weight Kgs : 22,2
Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 155
Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 12
Hydraulic Cylinders Base Mounting Holes Thread V : M6
Hydraulic Cylinders Base to Advance Port H mm : 43
Hydraulic Cylinders Collapsed Height A mm : 351
Hydraulic Cylinders Cylinder Bore Diameter E mm : 135
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 143,1
Hydraulic Cylinders Cylinder Effective Area Retract cm2 : 79,5
Hydraulic Cylinders Extended Height B mm : 501
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 1002
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 10
Hydraulic Cylinders Outside Diameter D mm : 185
Hydraulic Cylinders Plunger Diameter F mm : 90
Hydraulic Cylinders Saddle Diameter J1 mm : 71
Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 29
Hydraulic Cylinders Top To Retract Port I mm : 80
Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381
Hydraulic Cylinders Oil Capacity Advance Cm3 : 2,147
Hydraulic Cylinders Oil Capacity Retract Cm3 : 1,193
Hydraulic Cylinders Return Type : Double-Acting, Hydraulic Return
Hydraulic Cylinders Saddle Diameter J mm : 75
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 3
Hydraulic Cylinders Stroke Ranges mm : 120 - 174
PLG: default Price Group List Price : 1
