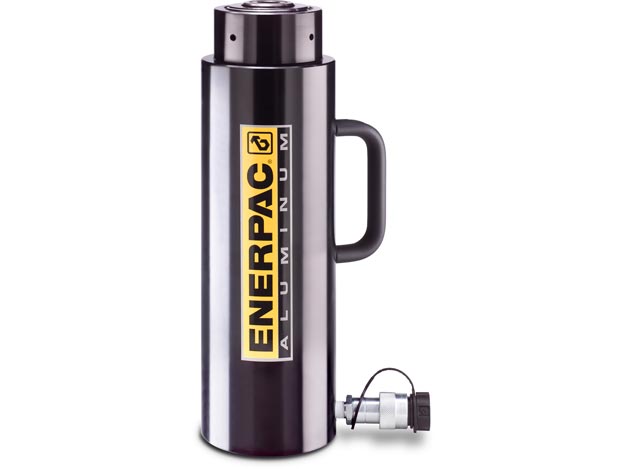

RACL308

RACL308

SKU: RACL308 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RACL

Stroke mm : 200

Unit Height Shipping Oracle ERP : 7

Unit Length Shipping Oracle ERP : 23

Unit Width Shipping Oracle ERP : 7

Weight Kgs : 7,5

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 80

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 12

Hydraulic Cylinders Base Mounting Holes Thread V : M6

Hydraulic Cylinders Base to Advance Port H mm : 33

Hydraulic Cylinders Collapsed Height A mm : 381

Hydraulic Cylinders Cylinder Bore Diameter E mm : 75

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 44,2

Hydraulic Cylinders Extended Height B mm : 581

Hydraulic Cylinders Lock Nut Height S mm : 50

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 309

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 100

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders Oil Capacity Advance Cm3 : 883

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Stroke Ranges mm : 175 - 239

PLG: default Price Group List Price : 1

Description

  • Lighter and shorter collapsed height than equivalent RACH models
  • Double-acting for rapid retraction, regardless of hose lengths or system losses
  • Built-in safety valve prevents accidental over-pressurization
  • Hollow plunger design allows for both pull and push forces
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Handles and CR400 couplers with dust caps included on all models
  • Floating center tube increases seal life
  • Steel baseplate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • All cylinders meet ASME B-30.1 standards

Additional information

Weight 10 kg
