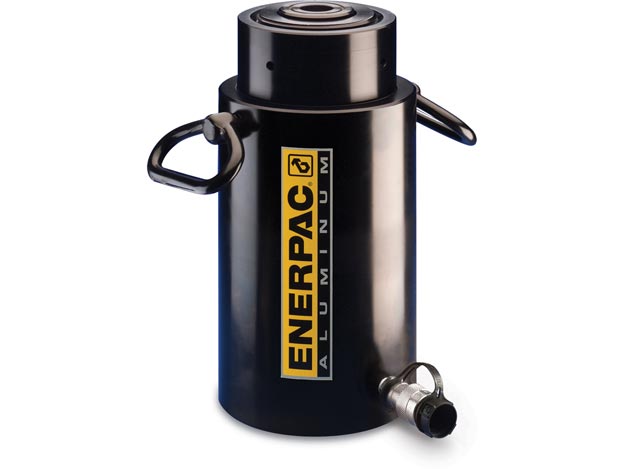

RACL15010

RACL15010

SKU: RACL15010 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RACL

Stroke mm : 250

Unit Height Shipping Oracle ERP : 12

Unit Length Shipping Oracle ERP : 27

Unit Width Shipping Oracle ERP : 14

Weight Kgs : 48,2

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 200

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 12

Hydraulic Cylinders Base Mounting Holes Thread V : M10

Hydraulic Cylinders Base to Advance Port H mm : 51

Hydraulic Cylinders Collapsed Height A mm : 523

Hydraulic Cylinders Cylinder Bore Diameter E mm : 170

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 227,0

Hydraulic Cylinders Extended Height B mm : 773

Hydraulic Cylinders Lock Nut Height S mm : 80

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 1589

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Optional Tilt Saddle Addition To Collapsed Height A1 mm : 18

Hydraulic Cylinders Outside Diameter D mm : 230

Hydraulic Cylinders Saddle Diameter J1 mm : 126

Hydraulic Cylinders Saddle Maximum Tilt Angle Radius Degrees : 5

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 35

Hydraulic Cylinders Collapsed Height A Ranges Mm : 509 - 635

Hydraulic Cylinders Oil Capacity Advance Cm3 : 5,675

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 113

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 3

Hydraulic Cylinders Stroke Ranges mm : 240 - 289

PLG: default Price Group List Price : 1

Description

  • Double-acting for rapid retraction, regardless of hose lengths and system losses
  • Composite bearings increase cylinder life and side load resistance
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Handles included on all models
  • Steel base plate and saddle for protection against load- induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • Built-in safety valve prevents accidental over-pressurization

Additional information

Weight 74 kg
