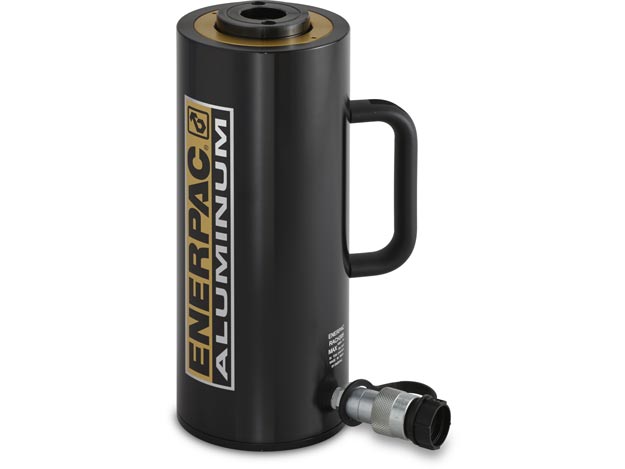

RACH308

RACH308

SKU: RACH308 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RACH

Stroke mm : 200

Unit Height Shipping Oracle ERP : 7

Unit Length Shipping Oracle ERP : 23

Unit Width Shipping Oracle ERP : 7

Weight Kgs : 12,9

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 110

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 12

Hydraulic Cylinders Base Mounting Holes Thread V : M6

Hydraulic Cylinders Base to Advance Port H mm : 29

Hydraulic Cylinders Center Hole Diameter Y mm : 34

Hydraulic Cylinders Collapsed Height A mm : 395

Hydraulic Cylinders Cylinder Bore Diameter E mm : 95

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 51,1

Hydraulic Cylinders Extended Height B mm : 595

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 358

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 130

Hydraulic Cylinders Plunger Diameter F mm : 70

Hydraulic Cylinders Saddle Diameter J1 mm : 70

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 10

Hydraulic Cylinders Collapsed Height A Ranges Mm : 382 - 508

Hydraulic Cylinders Oil Capacity Advance Cm3 : 1022

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 70

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 10

Hydraulic Cylinders Stroke Ranges mm : 175 - 239

PLG: default Price Group List Price : 1

Description

  • Double-acting for rapid retraction, regardless of hose lengths and system losses
  • Composite bearings increase cylinder life and side load resistance
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Handles included on all models
  • Steel base plate and saddle for protection against load- induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • Built-in safety valve prevents accidental over-pressurization

Additional information

Weight 12.9 kg
