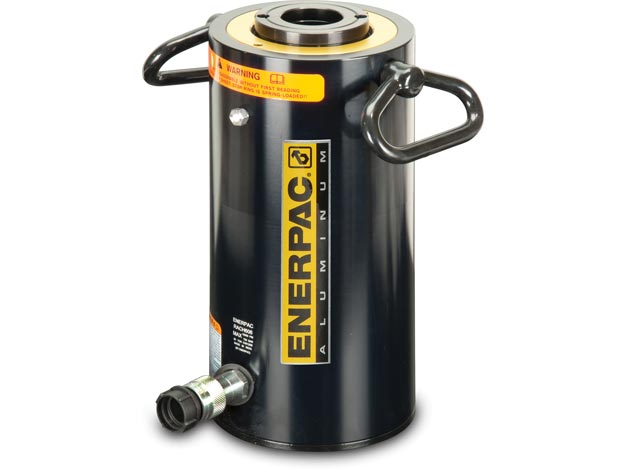

RACH1502

RACH1502

SKU: RACH1502 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RACH

Stroke mm : 50

Unit Height Shipping Oracle ERP : 12

Unit Length Shipping Oracle ERP : 27

Unit Width Shipping Oracle ERP : 14

Weight Kgs : 48,9

Hydraulic Cylinders Base Mounting Holes Bolt Circle U mm : 245

Hydraulic Cylinders Base Mounting Holes Thread Depth Z mm : 12

Hydraulic Cylinders Base Mounting Holes Thread V : M10

Hydraulic Cylinders Base to Advance Port H mm : 61

Hydraulic Cylinders Center Hole Diameter Y mm : 79

Hydraulic Cylinders Collapsed Height A mm : 280

Hydraulic Cylinders Cylinder Bore Diameter E mm : 205

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 225,8

Hydraulic Cylinders Extended Height B mm : 330

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 1588

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 275

Hydraulic Cylinders Plunger Diameter F mm : 150

Hydraulic Cylinders Saddle Diameter J1 mm : 145

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 14

Hydraulic Cylinders Collapsed Height A Ranges Mm : 255 - 381

Hydraulic Cylinders Oil Capacity Advance Cm3 : 1,129

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 145

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 14

Hydraulic Cylinders Stroke Ranges mm : 48 - 94

PLG: default Price Group List Price : 1

Description

  • Aluminum Lock Nut provides mechanical load holding for extended periods
  • Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Composite bearings increase cylinder life and side load resistance
  • Handles included on all models
  • Steel base plate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • High-strength return spring for rapid cylinder retraction
  • CR400 coupler and dustcap included on all models
  • All cylinders meet ASME B-30.1 standards

Additional information

Weight 55 kg
