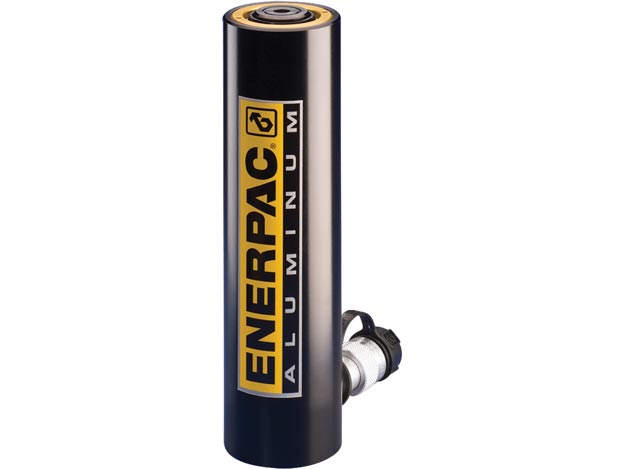

RAC154

RAC154

SKU: RAC154 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : RAC

Stroke mm : 100

Weight Kgs : 1,9

Hydraulic Cylinders Base Mounting Holes Thread V : M6

Hydraulic Cylinders Base to Advance Port H mm : 23

Hydraulic Cylinders Collapsed Height A mm : 211

Hydraulic Cylinders Cylinder Bore Diameter E mm : 1.97

Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 19,6

Hydraulic Cylinders Extended Height B mm : 311

Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 137

Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000

Hydraulic Cylinders Outside Diameter D mm : 70

Hydraulic Cylinders Plunger Diameter F mm : 40

Hydraulic Cylinders Saddle Diameter J1 mm : 29

Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 3

Hydraulic Cylinders Collapsed Height A Ranges Mm : 128 - 254

Hydraulic Cylinders Cylinder Material : Aluminum

Hydraulic Cylinders Oil Capacity Advance Cm3 : 200

Hydraulic Cylinders Plunger Type : Solid

Hydraulic Cylinders Return Type : Single-Acting, Spring Return

Hydraulic Cylinders Saddle Diameter J mm : 29

Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 3

Hydraulic Cylinders Stroke Ranges mm : 95 - 119

PLG: default Price Group List Price : 1

Description

  • Hollow plunger design allows for both pull and push forces
  • Composite bearings increase cylinder life and side load resistance
  • Hard coat finish on all surfaces resists damage and extends cylinder life
  • Handles included on all models
  • Floating center tube increases seal life
  • Steel baseplate and saddle for protection against load-induced damage
  • Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
  • High-strength return spring for rapid cylinder retraction
  • CR400 coupler and dustcap included on all models
  • All cylinders meet ASME B-30.1 standards

Additional information

Weight 1.9 kg
