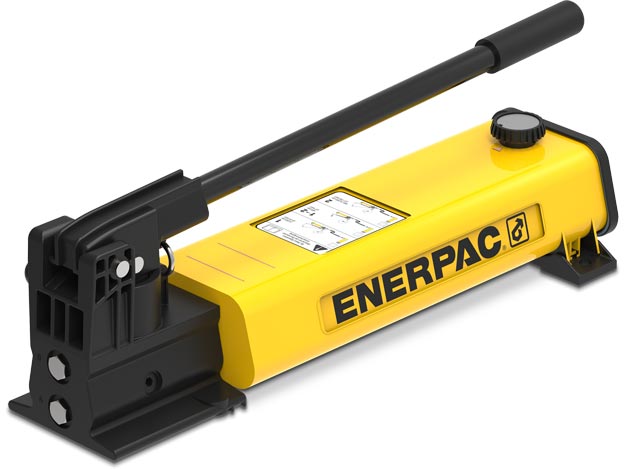

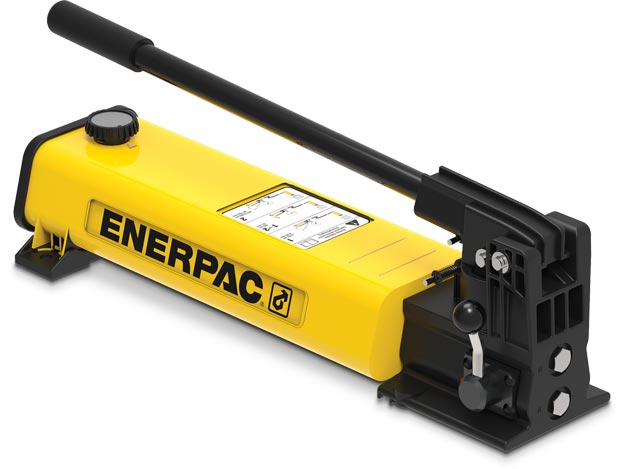

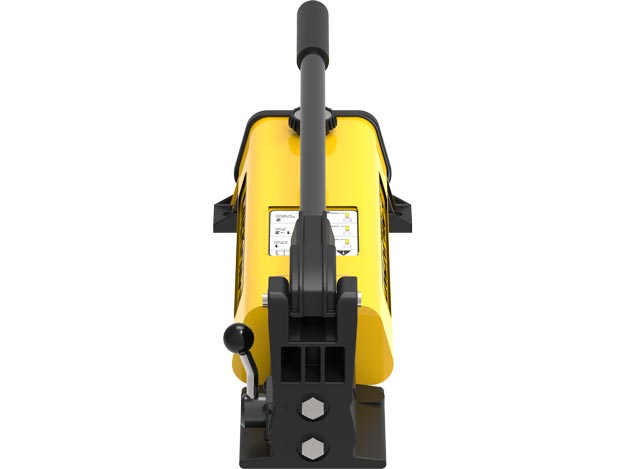

P842
P842 - Image 2
P842 - Image 3

P842

SKU: P842 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : P

Unit Height Shipping Oracle ERP : 9

Unit Length Shipping Oracle ERP : 7

Unit Width Shipping Oracle ERP : 24

Dimension A mm : 337

Dimension B mm : 552

Dimension C mm : 45

Dimension D mm : 133

Dimension E mm : 20

Dimension H mm : 527

Dimension J mm : 30

Weight Kgs : 10,0

Hydraulic Pump Dimension L mm : 228

Hydraulic Pump Dimension N mm : 181

Hydraulic Pump Dimension P mm : 153

Hydraulic Pump Dimension Q mm : 36

Hydraulic Pump Dimension S mm : 10

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 0 - 20

Hydraulic Pump Maximum Flowat Rated Pressure : 2,47 cm3/stroke

Hydraulic Pump Maximum Handle Effort kg : 43,1

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Oil Displacement Per Stroke 1st Stage cm3 : 39,33

Hydraulic Pump Oil Displacement Per Stroke 2nd Stage cm3 : 2,47

Hydraulic Pump Piston Stroke mm : 25,4

Hydraulic Pump Pressure Rating 1st Stage Psi : 400

Hydraulic Pump Pressure Rating 1st Stage bar : 27

Hydraulic Pump Pressure Rating 2nd Stage bar : 700

Hydraulic Pump Pressure Rating 2nd Stage Psi : 10,000

Hydraulic Pump Power Source : Manual

Hydraulic Pump Reservoir Capacity cm3 : 2,540

Hydraulic Pump Usable Oil Capacity cm3 : 2540

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 0.00247

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 2,47 cm3/stroke

PLG: default Price Group List Price : 1

Description

  • Powerful two-speed pump is lightweight and easy to carry
  • Standard heat exchanger package keeps pump cool under extreme use
  • Glycerin filled gauge with scales reading in psi and bar
  • Transparent overlays in Ft.lbs and Nm for all Enerpac torque wrenches provide a quick torque reference
  • Universal motor for a high power-to-weight ratio; generates full pressure on as little as 50% of the rated line voltage
  • Adjustable pressure relief valve for accurate torque adjustments and precise repeatability

Additional information

Weight 7.433 kg
