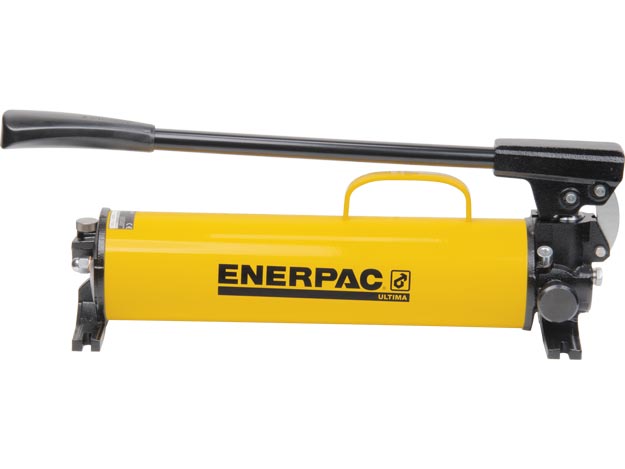

P80

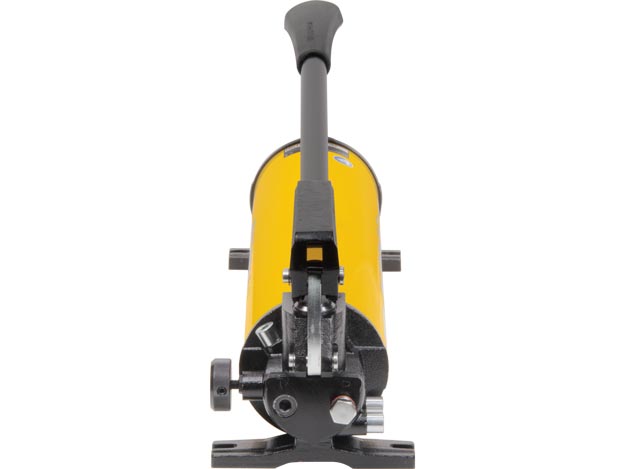

P80 - Image 2

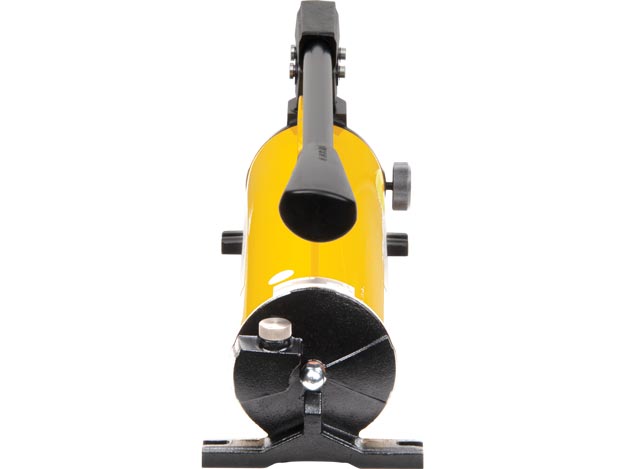

P80 - Image 3

P80

SKU: P80 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : P

Unit Height Shipping Oracle ERP : 10

Unit Length Shipping Oracle ERP : 7

Unit Width Shipping Oracle ERP : 24

Dimension A mm : 428

Dimension B mm : 511

Dimension C mm : 30

Dimension D mm : 35

Dimension E mm : 55

Dimension H mm : 579

Dimension J mm : 460

Weight Kgs : 10,7

Hydraulic Pump Cylinder Compatability : Single-acting

Hydraulic Pump Dimension L mm : 195

Hydraulic Pump Dimension N mm : 150

Hydraulic Pump Dimension P mm : 121

Hydraulic Pump Dimension Q mm : 42

Hydraulic Pump Dimension S mm : 8,4

Hydraulic Pump Dimension T mm : 74

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 0 - 20

Hydraulic Pump Maximum Flowat Rated Pressure : 2,46 cm3/stroke

Hydraulic Pump Maximum Handle Effort kg : 35

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Oil Displacement Per Stroke 1st Stage cm3 : 16,39

Hydraulic Pump Oil Displacement Per Stroke 2nd Stage cm3 : 2,46

Hydraulic Pump Piston Stroke mm : 25,4

Hydraulic Pump Pressure Rating 1st Stage Psi : 500

Hydraulic Pump Pressure Rating 1st Stage bar : 34

Hydraulic Pump Pressure Rating 2nd Stage bar : 700

Hydraulic Pump Pressure Rating 2nd Stage Psi : 10,000

Hydraulic Pump Power Source : Manual

Hydraulic Pump Reservoir Capacity cm3 : 2200

Hydraulic Pump Usable Oil Capacity cm3 : 2200

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 0.00246

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 2,46 cm3/stroke

PLG: default Price Group List Price : 1

Description

  • Extensions – Stackable, with large alloy steel locating studs to resist effects of side-loading

Additional information

Weight 11.802 kg
