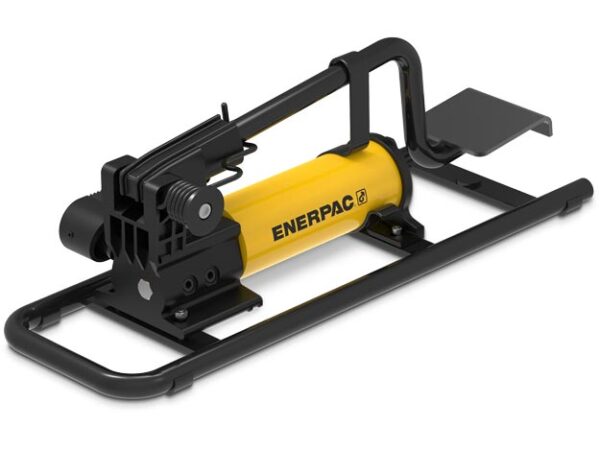

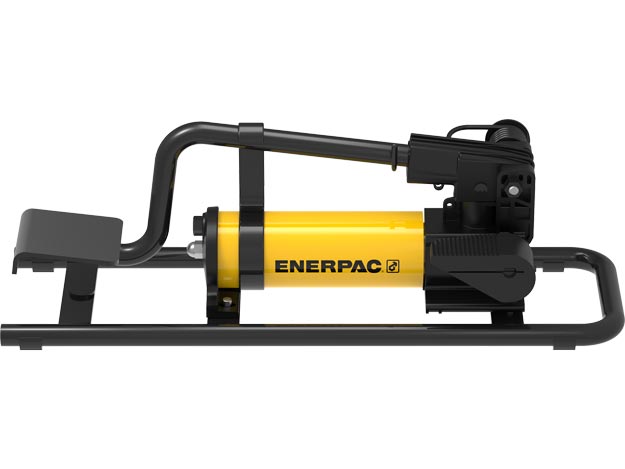

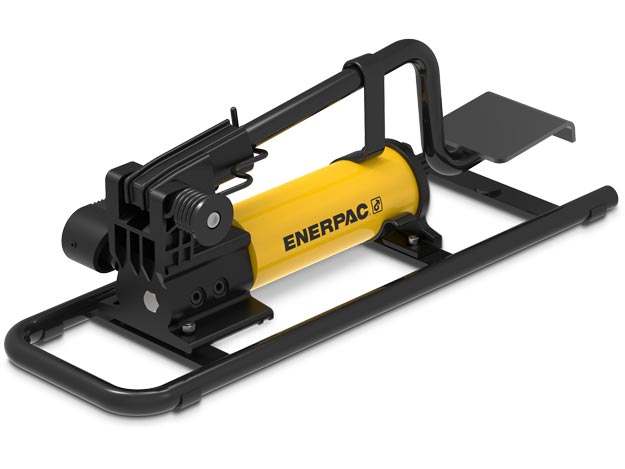

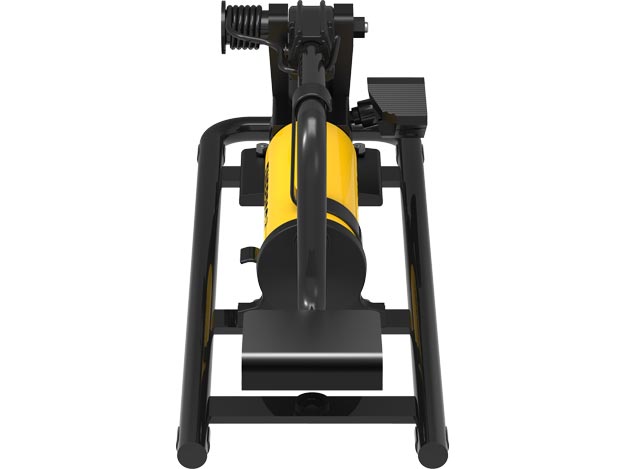

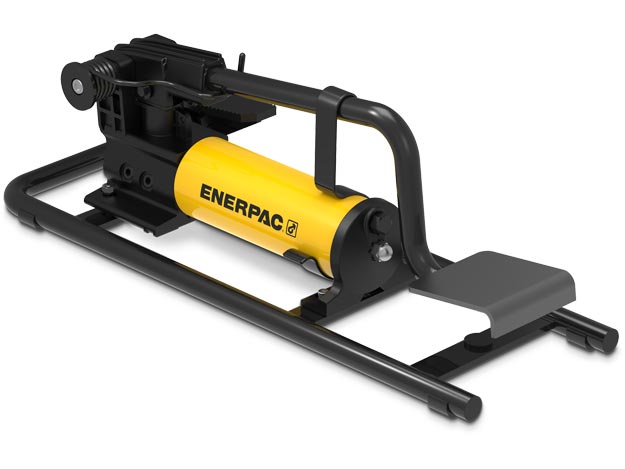

P392FP
P392FP - Image 2
P392FP - Image 3
P392FP - Image 4

P392FP

SKU: P392FP Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : P

Unit Height Shipping Oracle ERP : 9

Unit Length Shipping Oracle ERP : 33

Unit Width Shipping Oracle ERP : 9

Weight Kgs : 7,0

Hydraulic Pump Cylinder Compatability : Single-acting

Hydraulic Pump Maximum Flow Rate Ranges at Rated Pressure In 3 min : 0 - 20

Hydraulic Pump Maximum Flowat Rated Pressure : 2,47 cm3/stroke

Hydraulic Pump Maximum Handle Effort kg : 42

Hydraulic Pump Maximum Operating Pressure Ranges Bar : 700

Hydraulic Pump Maximum Operating Pressure Ranges Psi : 10,000

Hydraulic Pump Oil Displacement Per Stroke 1st Stage cm3 : 11,26

Hydraulic Pump Oil Displacement Per Stroke 2nd Stage cm3 : 2,47

Hydraulic Pump Piston Stroke mm : 25,4

Hydraulic Pump Pressure Rating 1st Stage Psi : 200

Hydraulic Pump Pressure Rating 1st Stage bar : 15

Hydraulic Pump Pressure Rating 2nd Stage bar : 700

Hydraulic Pump Pressure Rating 2nd Stage Psi : 10,000

Hydraulic Pump Power Source : Manual

Hydraulic Pump Reservoir Capacity cm3 : 492

Hydraulic Pump Usable Oil Capacity cm3 : 492

Hydraulic Pump Valve Operation : Manual

Hydraulic Pump Maximum Flow At Rated Pressure Liter : 0.00247

Hydraulic Pump Maximum Flow At Rated Pressure Metric : 2,47 cm3/stroke

PLG: default Price Group List Price : 1

Description

  • Extension Base Adapter – Extension Base Adapter design eliminates risk of improper stacking when using more than one extension
  • PLE11 and PLE14 extensions and PLB12 extension base adapter are to be used with the “short” model PL20014ASA only

Additional information

Weight 8.509 kg
