NSH41

NSH41

SKU: NSH41 Categories: , , Brand:
Login to purchase
Enquire for this product

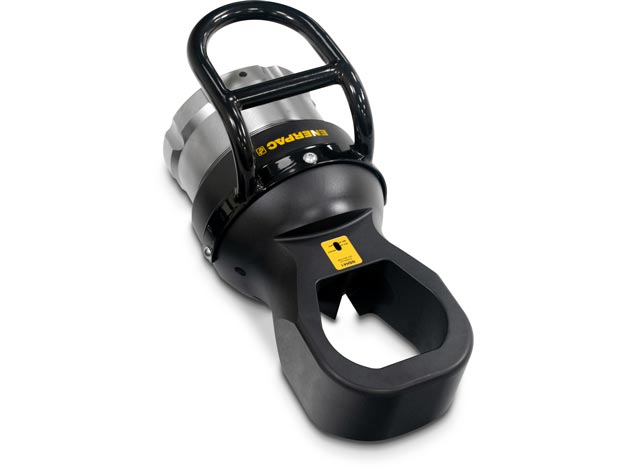

Series : NSH - Cutting Heads

Compatible Products : NSPH4,NSPH4D

Dimension A mm : 189

Dimension B mm : 365

Dimension D mm : 235

Dimension F mm : 230

Weight Kgs : 32

Cutter Cutting and Power Head Weight kg : 70

Cutter Maximum Allowable Hardness to Split : ASTM A194 Gr 2H

Cutter Bolt Range mm : M76 - M80

Cutter Dimension N mm : 36

Cutter Dimension T mm : 111

Cutter Hexagon Nut Range mm : 110 - 115

PLG: default Price Group List Price : 1

Description

  • Rugged construction – built for long life and easy service
  • Swivel coupling simplifies hydraulic connection and pump operation
  • Three-position treadle provides cylinder advance, hold and retract operation

Additional information

Weight 32 kg
