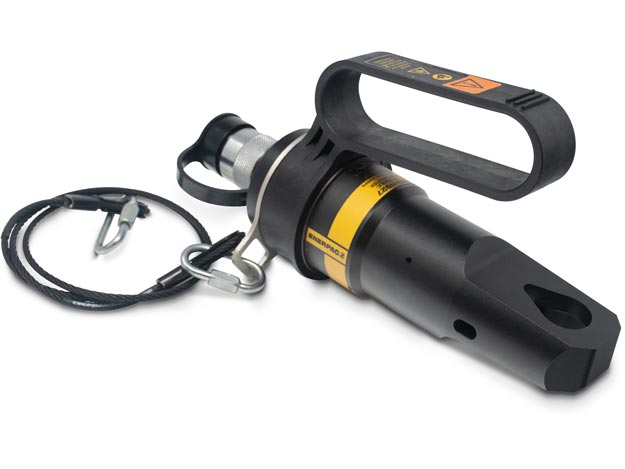

NSH1927

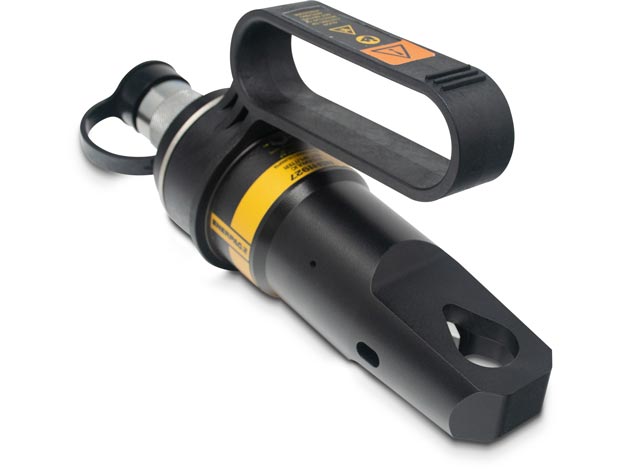

NSH1927 - Image 2

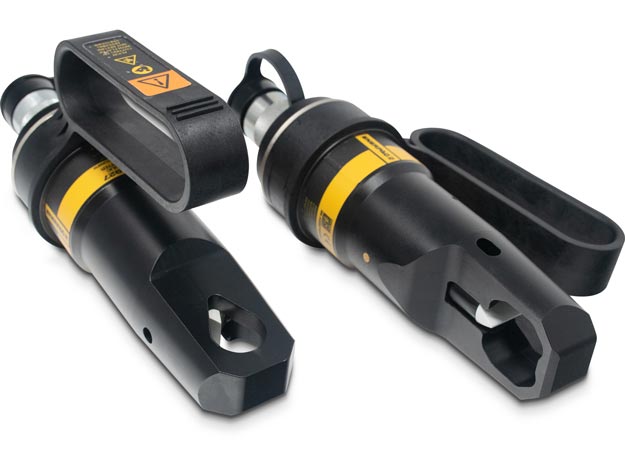

NSH1927 - Image 3

NSH1927

SKU: NSH1927 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : NSH

Capacity KN : 120

Dimension A mm : 258

Dimension B mm : 213

Dimension C mm : 152

Dimension D mm : 81

Weight Kgs : 3,5

Cutter Cutter Head Return Type : Single-Acting, Spring Return

Cutter Maximum Allowable Hardness to Split : ASTM A194 Gr 2H

Cutter Bolt Range mm : M12 - M18

Cutter Cutting Tip Service Kit Model Number : NSH1927CTK

Cutter Dimension H Max mm : 18

Cutter Dimension N Min mm : 11,5

Cutter Dimension S Max mm : 24,5

Cutter Dimension T mm : 26,5

Cutter Dimension W Min mm : 53,5

Cutter Hexagon Nut Range mm : 19 - 27

Cutter Oil Capacity C m3 : 46

PLG: default Price Group List Price : 1

Description

  • Reduced handle effort and ergonomic grip for less operator fatigue
  • Vent free reservoir eliminates spills
  • Quick grip handle allows for easy transport
  • Integral reservoir over-pressurization protection
