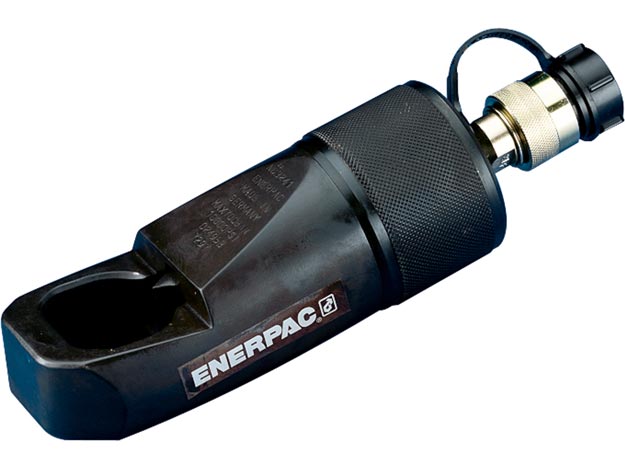

NC4150

NC4150

SKU: NC4150 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : NC

Unit Height Shipping Oracle ERP : 17

Unit Length Shipping Oracle ERP : 23

Unit Width Shipping Oracle ERP : 7

Capacity KN : 343

Dimension A mm : 94

Dimension B mm : 288

Dimension C mm : 21

Dimension D mm : 45

Dimension F mm : 74

Dimension H mm : 105

Dimension J mm : 54

Height Dimension mm : 109

Length Dimension mm : 325

Weight Kgs : 8.2

Width Dimension mm : 96

Cutter Cutter Head Return Type : Single-Acting, Spring Return

Cutter Maximum Allowable Hardness to Split : HRC 44

Cutter Replacement Chisel Model Number : NCB4150

Cutter Bolt Range mm : M27 - M33

Cutter Hexagon Nut Range mm : 41 - 50

Cutter Oil Capacity C m3 : 155

Cutter Replacement Chisel Model Number Moving : NCB4150

PLG: default Price Group List Price : 1

Additional information

Weight 13.281 kg
