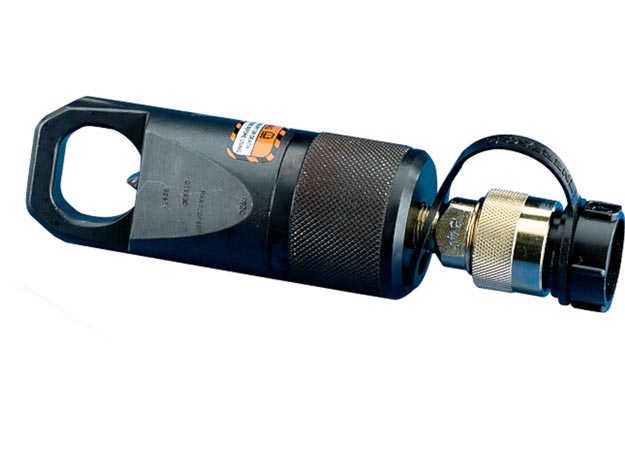

NC3241

NC3241

SKU: NC3241 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : NC

Unit Height Shipping Oracle ERP : 14

Unit Length Shipping Oracle ERP : 5

Unit Width Shipping Oracle ERP : 16

Capacity KN : 196

Dimension A mm : 75

Dimension B mm : 244

Dimension C mm : 17

Dimension D mm : 36

Dimension F mm : 66

Dimension H mm : 88

Dimension J mm : 43

Height Dimension mm : 89

Length Dimension mm : 286

Weight Kgs : 4.4

Width Dimension mm : 75

Cutter Cutter Head Return Type : Single-Acting, Spring Return

Cutter Maximum Allowable Hardness to Split : HRC 44

Cutter Replacement Chisel Model Number : NCB3241

Cutter Bolt Range mm : M22 - M27

Cutter Hexagon Nut Range mm : 32 - 41

Cutter Oil Capacity C m3 : 80

Cutter Replacement Chisel Model Number Moving : NCB3241

PLG: default Price Group List Price : 1

Additional information

Weight 6.816 kg
