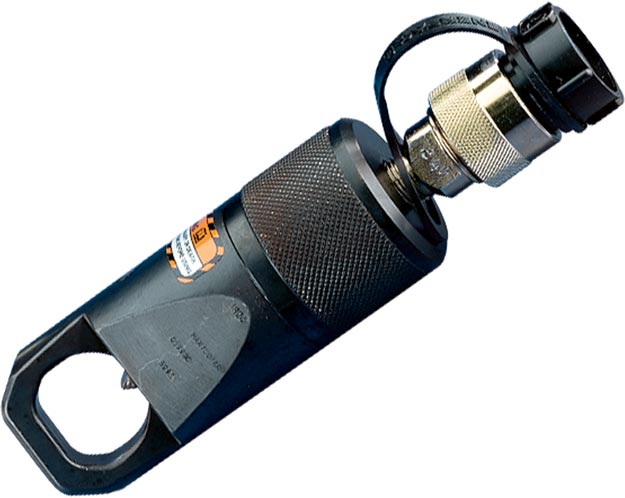

NC1924

NC1924

SKU: NC1924 Categories: , , Brand:
Login to purchase
Enquire for this product

Maximum Operating Pressure psi : 10,000

Maximum Operating Pressure bar : 700

Series : NC

Unit Height Shipping Oracle ERP : 4

Unit Length Shipping Oracle ERP : 15

Unit Width Shipping Oracle ERP : 11

Capacity KN : 98

Dimension A mm : 54

Dimension B mm : 191

Dimension C mm : 10

Dimension D mm : 26

Dimension F mm : 40

Dimension H mm : 62

Dimension J mm : 25

Height Dimension mm : 71

Length Dimension mm : 227

Weight Kgs : 2

Width Dimension mm : 55

Cutter Cutter Head Return Type : Single-Acting, Spring Return

Cutter Maximum Allowable Hardness to Split : HRC 44

Cutter Replacement Chisel Model Number : NCB1924

Cutter Bolt Range mm : M12 - M16

Cutter Hexagon Nut Range mm : 19 - 24

Cutter Oil Capacity C m3 : 20

Cutter Replacement Chisel Model Number Moving : NCB1924

PLG: default Price Group List Price : 1

Additional information

Weight 3.545 kg
