Maximum Operating Pressure psi : 10,150
Maximum Operating Pressure bar : 700

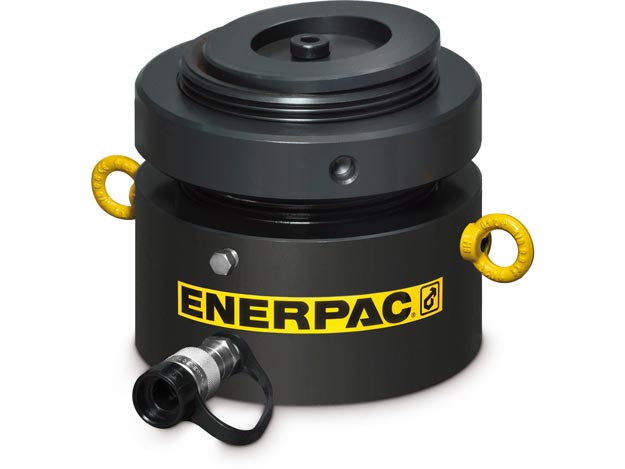

Series : LPL
Stroke mm : 50
Weight Kgs : 15
Hydraulic Cylinders Base to Advance Port H mm : 19
Hydraulic Cylinders Collapsed Height A mm : 125
Hydraulic Cylinders Cylinder Bore Diameter E mm : 105
Hydraulic Cylinders Cylinder Effective Area Advance cm2 : 86,6
Hydraulic Cylinders Extended Height B mm : 175
Hydraulic Cylinders Lock Nut Height S mm : 28
Hydraulic Cylinders Maximum Cylinder Capacity Advance kn : 606
Hydraulic Cylinders Maximum Operating Pressure Ranges psi : 10,000
Hydraulic Cylinders Outside Diameter D mm : 140
Hydraulic Cylinders Saddle Diameter J1 mm : 96
Hydraulic Cylinders Saddle Protrusion from Plunger K1 mm : 6
Hydraulic Cylinders Sideload Resistance of Maximum Capacity Percentage : 10%
Hydraulic Cylinders Collapsed Height A Ranges Mm : 0 - 127
Hydraulic Cylinders Return Type : Single-Acting, Load Return
Hydraulic Cylinders Saddle Diameter J mm : 96
Hydraulic Cylinders Saddle Protrusion From Plunger K mm : 6
Hydraulic Cylinders Stroke Ranges mm : 48 - 94
